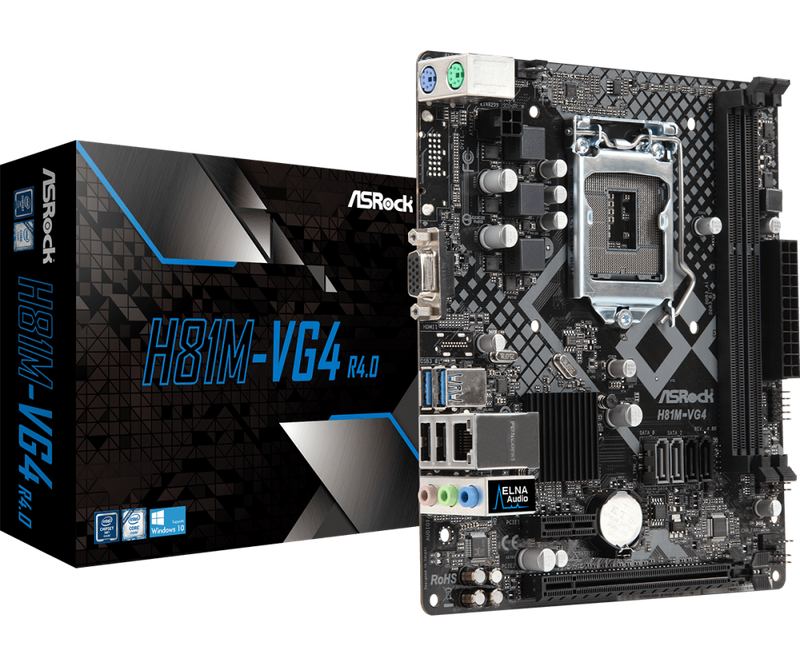

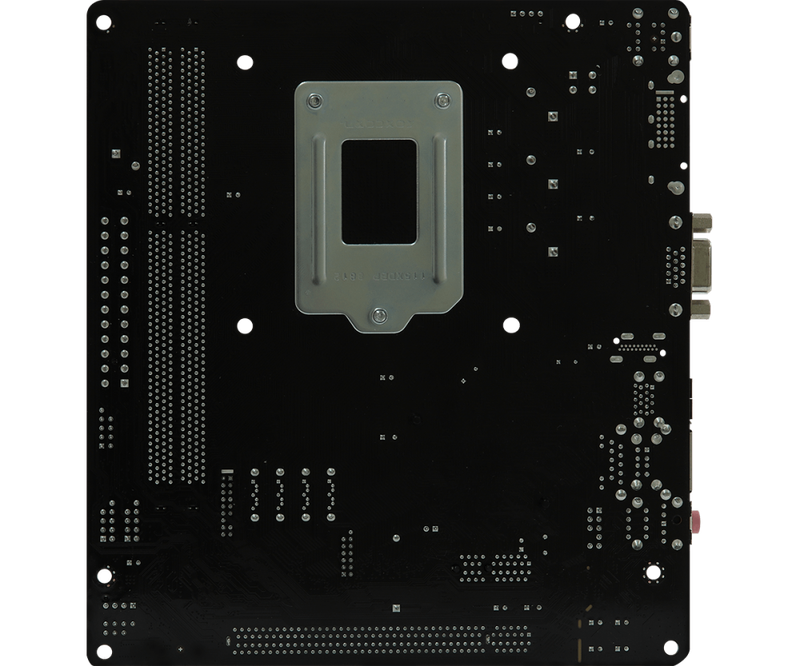

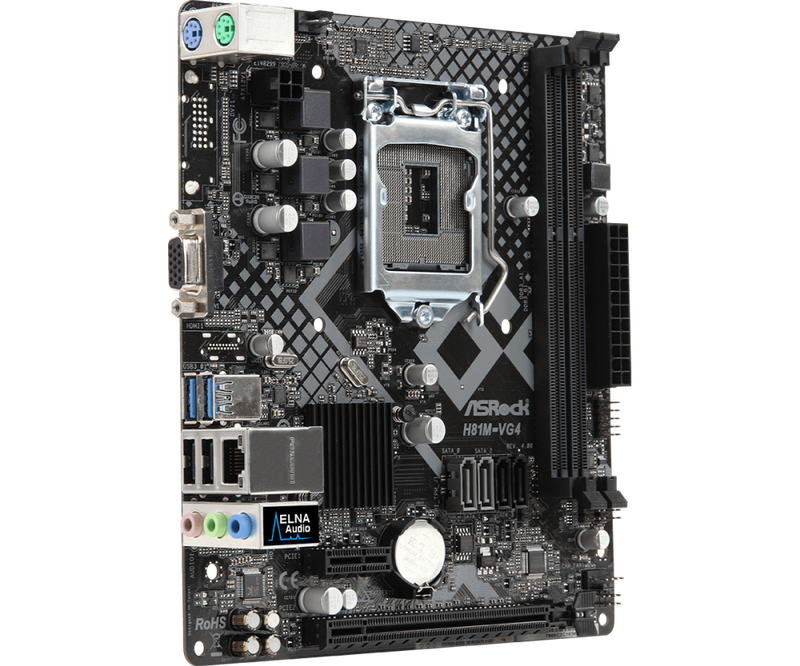

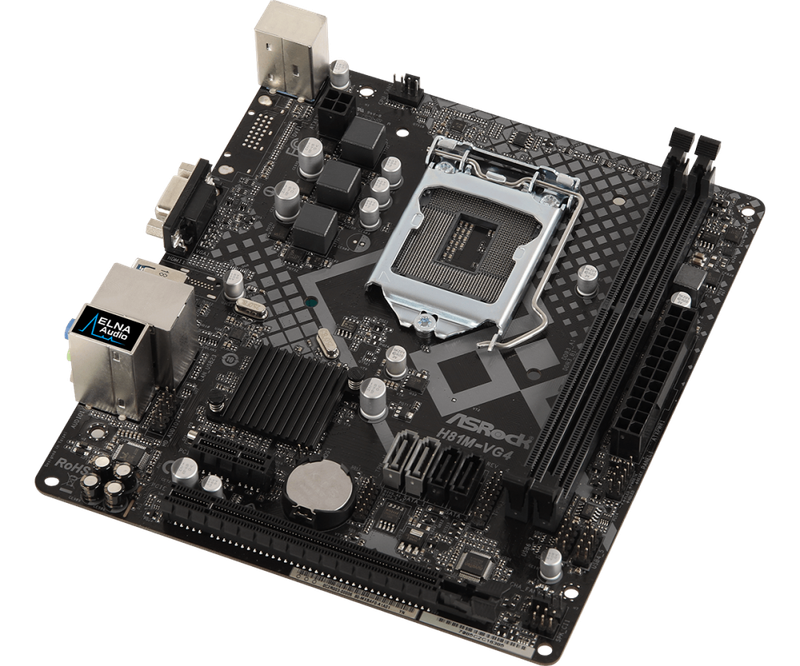

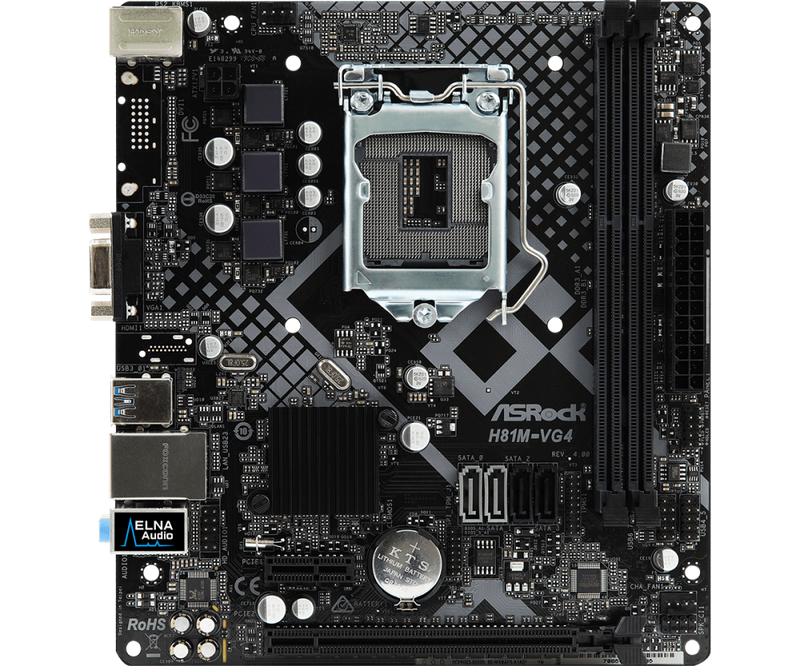

ASROCK H81M-VG4 R4.0

THÔNG SỐ

• CPU - Supports New 4th and 4th Generation Intel® Core™ i7/i5/i3/Xeon®/Pentium®/Celeron® Processors (Socket 1150)
  - Supports Intel® Turbo Boost 2.0 Technology
• Chipset - Intel® H81
• Memory - Dual Channel DDR3/DDR3L Memory Technology
  - 2 x DDR3/DDR3L DIMM Slots
  - Supports DDR3/DDR3L 1600 / 1333/1066 non-ECC, un-buffered memory
  - Max. capacity of system memory: 16GB*
  - Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
• BIOS - 32Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 1.1 Compliant wake up events
  - SMBIOS 2.3.1 support
  - CPU, DRAM Voltage multi-adjustment
• Graphics - Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600*
  - Pixel Shader 5.0, DirectX 11.1
  - Max. shared memory 1024MB*
  - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    *Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

  **The size of maximum shared memory may vary from different operating systems.
• Audio - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  - Supports Surge Protection
• LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111H
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE
• Slots - 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
  - 1 x PCI Express 2.0 x1 Slot
• Storage - 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• Connector - 1 x Chassis Intrusion and Speaker Header
  - 1 x TPM Header
  - 1 x SPI TPM Header
  - 1 x CPU Fan Connector (4-pin)
  - 1 x Chassis Fan Connector (4-pin)
  - 1 x 24 pin ATX Power Connector
  - 1 x 4 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• Rear Panel I/O - 1 x PS/2 Mouse Port
  - 1 x PS/2 Keyboard Port
  - 1 x D-Sub Port
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jack: Line in / Front Speaker / Microphone
• Unique Feature Software
  - ASRock Disk Health Report
  - ASRock USB Key
  - ASRock APP Charger
  - ASRock XFast LAN
  - ASRock XFast RAM
  - ASRock Fast Boot (Fast Boot, Restart to UEFI)
  * These utilities can be downloaded from
  ASRock Live Update & APP Shop. UEFI
  - ASRock Interactive UEFI
  - ASRock UEFI Guide
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Crashless BIOS
  - ASRock UEFI Tech Service
  - ASRock Easy Driver Installer
• Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
• Hardware Monitor - CPU/Chassis temperature sensing
  - CPU/Chassis Tachometer
  - CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
  - CPU/Chassis Fan multi-speed control
  - CASE OPEN detection
  - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
• Form Factor - Micro ATX Form Factor: 7.5-in x 6.7-in, 19.1 cm x 17.0 cm
  - Solid Capacitor design
• OS - Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
• Certifications - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
