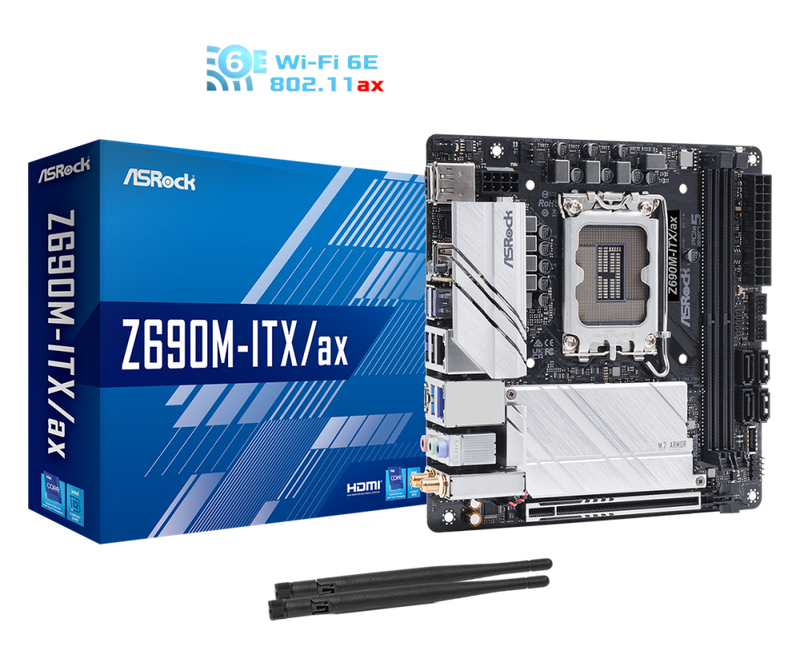

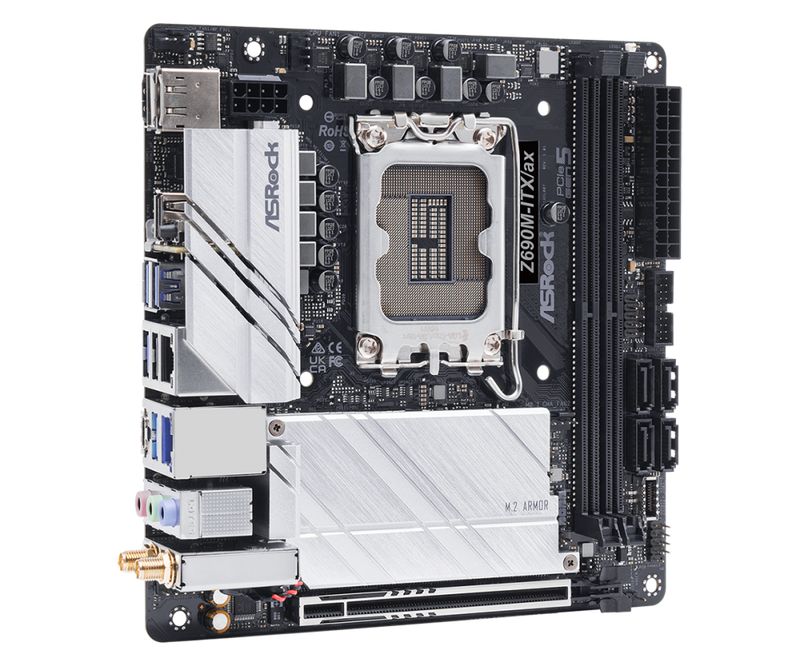

ASROCK Z690M-ITX/AX

THÔNG SỐ

• Unique Feature ASRock USB 3.2 Gen2
  - ASRock Front Panel Type-C USB 3.2 Gen2 Header (10 Gb/s)
  - ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
  ASRock Super Alloy
  - Premium 60A Power Choke
  - 50A Dr.MOS
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  - 8 Layer PCB
  2.5G LAN
  802.11ax Wi-Fi 6E
  ASRock Auto Driver Installer
  ASRock Steel Slot
  ASRock Full Coverage M.2 Heatsink
  ASRock Hyper M.2 (PCIe Gen4x4)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU - Supports 12th Gen Intel® Core™ Processors (LGA1700)
  - Digi Power design
  - 8 Power Phase design
  - Supports Intel® Hybrid Technology
  - Supports Intel® Turbo Boost Max 3.0 Technology
• Chipset - Intel® Z690
• Memory - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB
  - Supports Intel® Extreme Memory Profile (XMP) 2.0
    *Supports DDR4 3200 natively.
• BIOS - 256Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
• Graphics - Intel® Xe Graphics Architecture (Gen 12)
  - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
  - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
  - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Supports Surge Protection
  - Nahimic Audio
• LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
  - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports UEFI PXE
• Wireless LAN - 802.11ax Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ax
  - Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth + High speed class II
  - Supports MU-MIMO
    *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.
• Slots - 1 x PCIe Gen5x16 Slot*
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
    *Supports PCIe riser cards to extend one x16 slot to two x8 slots
  Supports NVMe SSD as boot disks
• Storage - 4 x SATA3 6.0 Gb/s Connectors
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
    *Supports Intel® Optane™ Technology
  Supports Intel® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*
    *Requires additional M.2 NVMe expansion cards to support RAID 5
• Connector - 1 x RGB LED Header*
  - 1 x Addressable LED Header**
  - 1 x CPU Fan Connector (4-pin)***
  - 1 x Chassis Fan Connector (4-pin)****
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (Supports ESD Protection)
  * Actual speed depends on USB devices and extension Cable in the chassis.
    *Supports in total up to 12V/3A, 36W LED Strip

  **Supports in total up to 5V/3A, 15W LED Strip

  ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  ****The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

  *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)
  - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  - 1 x BIOS Flashback Button
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Dragon 2.5G LAN Software
  - ASRock Polychrome SYNC*
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash
  - ASRock Easy RAID Installer
    *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Accessories - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
  - 2 x Screws for M.2 Sockets
• Hardware Monitor - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
  - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
• Form Factor - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  - 8 Layer PCB
• OS - Microsoft® Windows® 10 64-bit / 11 64-bit
• Certifications - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
