| | RG-AP810-L |
| Dimensions | 220mm×220mm×49mm |
| Weight | Device：0.6kg |
| Mounting Kit：0.2kg |
| Installation | Ceiling / Wall |
| Anti-theft Lock | Support |
| | RG-AP810-L |
| Radio | Dual-radio dual-band: |
| Radio1：2.4GHz 11ax，2×2 MIMO |
| Radio2：5GHz 11ax，2×2 MIMO |
| Operating Band | Radio1: |
| 802.11b/g/n/ax，2.4GHz～2.483GHz，HE40 |
| Radio2： |
| 802.11a/n/ac/ax，5.150GHz～5.350GHz，HE80 |
| 802.11a/n/ac，5.470GHz～5.725GHz，5.725GHz～5.850GHz，HE80 |
| Note: vary depending on different countries |
| Max Throughput | Radio1：2.4GHz，0.574Gbps |
| Radio2：5GHz，1.201Gbps |
| Maximum throughput per AP: |
| 2.4GHz+5GHz，1.775Gbps |
| Antenna Type | Integrated Omnidirectional |
| Antenna Gain | 2.4GHz： 3dBi |
| 5GHz： 3dBi |
| Transmit Power | 20dBm |
| Note: vary depending on different countries |
| Adjustable Power | 1dBm |
| Modulation | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps |
| DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps |
| MIMO-OFDM：BPSK，QPSK，16QAM 、64QAM 、256QAM and1024QAM |
| OFDMA |
| | RG-AP810-L |

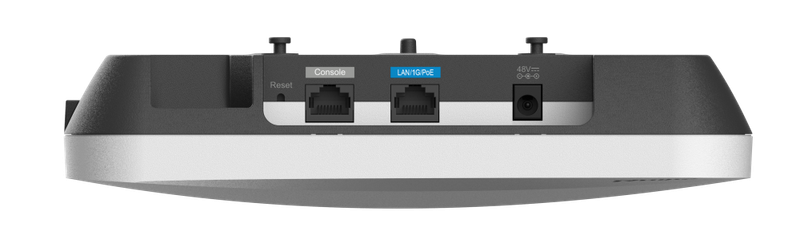

| Interfaces | 1 10/100/1000M BASE-T Ethernet Port, PoE In (Support IEEE 802.3af) |
| Full Spectrum Operation in IEEE 802.3af Mode |
| Bluetooth | BT 5.1 |
| Management Port | 1 RJ45 Console Port |
| LED Indicator | 1 LED Indicator |
| Reset Button | Support |
| | RG-AP810-L |
| Power Supply | Local Power Supply (DC 48V/0.6A) |
| Note: DC power adapters should be purchased separately from third-party vendors if needed. |
| PoE（IEEE 802.3af Standard）- Full Spectrum Operation |
| Power Consumption | 12.95W |
| | RG-AP810-L |
| Temperature | Operating Temperature: -10°C～50°C |
| Storage Temperature: -40°C～70°C |
| Humidity | Operating Humidity: 5%~95% (non-condensing) |
| Storage Temperature: 5%~95% (non-condensing) |
| IP Rating | IP41 |
| Safety Standard | GB 4943.1-2011，IEC 62368-1 |
| EMC Standard | EN 300386,GB/T 19286-2015,GB/T 17618-2015 |
| | RG-AP810-L |
| WLAN | Maximum Clients: 512 |
| Recommended Client: 120 |
| SSID Hiding: Support |
| 5G Priority (Band Steering): Support |
| Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID: Support |
| Remote Intelligent Perception Technology (RIPT): Support |
| Intelligent Device Recognition Technology: Support |
| Intelligent Load Balancing Based on the Number of Users or Traffic: Support |
| STA Limit Control: SSID/Radio based |
| Bandwidth Control: STA/SSID/AP-based |
| Security | Support PSK and Web authentication |
| Data Encryption: WPA（TKIP）、WPA-PSK、WPA2（AES）、WPA3、WEP（64/128bits） |
| PPSK authentication: Support |
| 802.1X authentication: Support |
| PEAP authentication: Support |
| Data Frame Filtering: Allow list, Static/Dynamic Block list |
| User Isolation: Support |
| Rogue AP Detection and Countermeasure: Support |
| Dynamic ACL Assignment: Support |
| RADIUS: Support |
| CPU Protection Policy (CPP) Support |
| Network Foundation Protection Policy (NFPP): Support |
| IP | IPv4: Support Static and DHCP IP Address |
| Support Multicast to Unicast Conversion |
| DHCP Service: Support DHCP Snooping, Option 82, Server, Client |
| Operation & Management | Support Wireless LAN Controllers: |
| Ruijie RG-WS Series Wireless Controller |
| Ruijie Cloud (Public Cloud) |
| Ruijie Private Cloud |
| Management Protocol: Telnet, SSH, TFTP, FTP, Web |
| Wireless Intelligent AI Optimization Service (WIS): Support |
| SNMP: Support V1, V2c, V3 |
| Syslog / Debug: Support |
| FAT/FIT/Cloud Managed Mode Firmware: Support FAT (Standalone) or FIT (WS Controller) or Cloud Managed (Ruijie Public/Private Cloud) Management |
