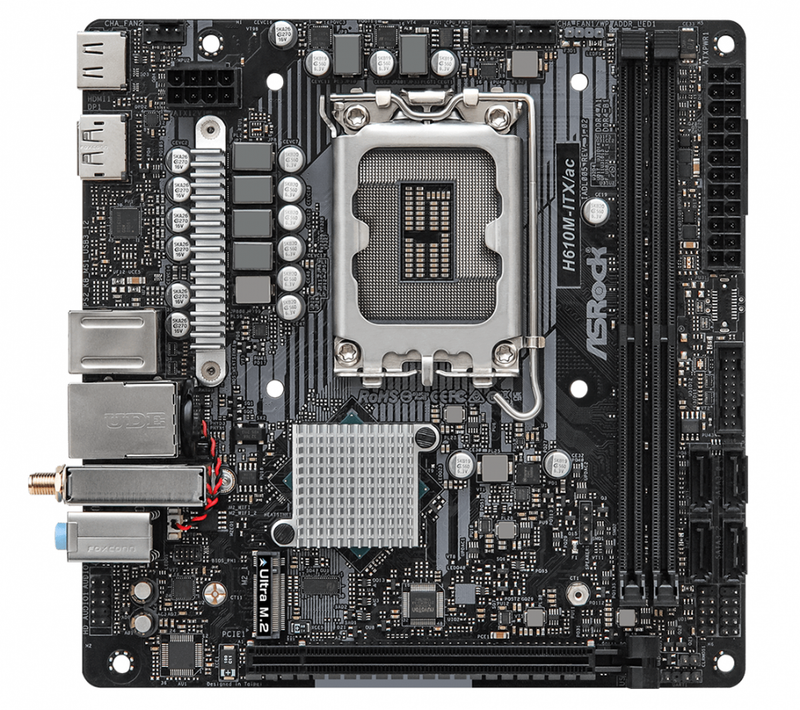

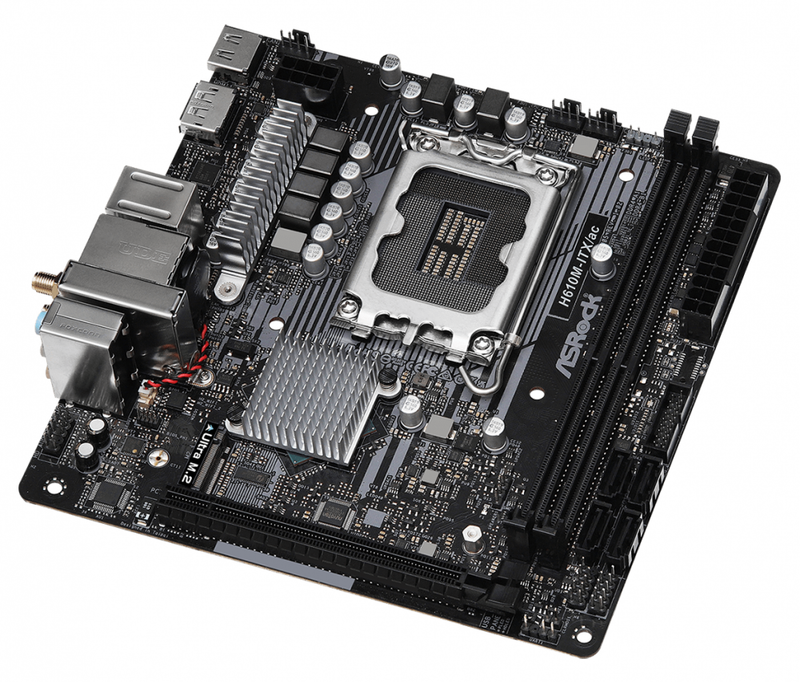

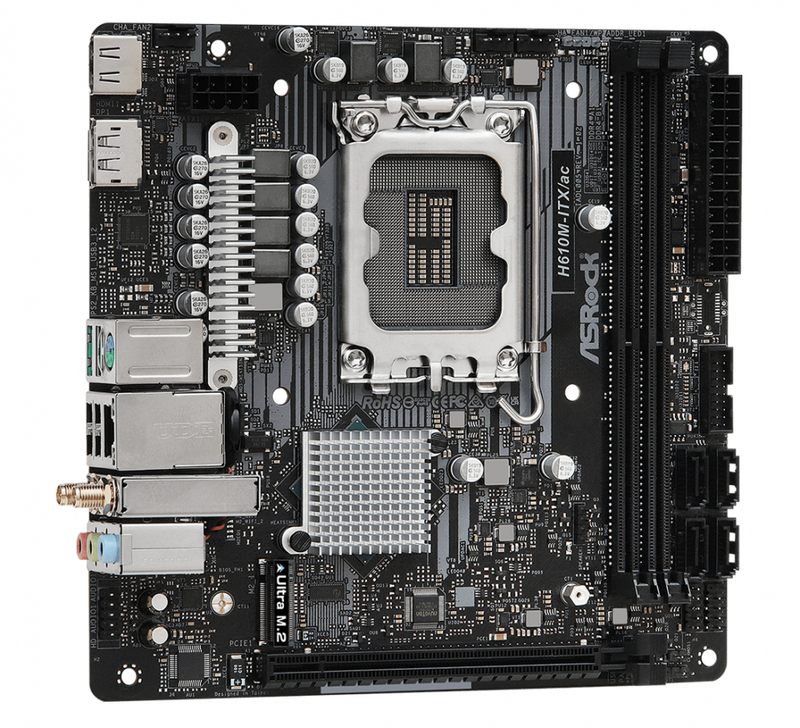

Mainboard ASROCK H610M-ITX/AC

THÔNG SỐ

• Unique Feature ASRock Super Alloy
  - Premium Power Choke
  - 50A Dr.MOS
  - Sapphire Black PCB
  - High Density Glass Fabric PCB
  802.11ac WiFi
  ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)
  ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
  ASRock Live Update & APP Shop
• CPU - Supports 12th Gen Intel® Core™ Processors (LGA1700)
  - Digi Power design
  - 6 Power Phase design
  - Supports Intel® Hybrid Technology
  - Supports Intel® Turbo Boost Max 3.0 Technology
• Chipset - Intel® H610
• Bộ nhớ RAM - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 non-ECC, un-buffered memory up to 3200
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB
  - Supports Intel® Extreme Memory Profile (XMP) 2.0
• BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
  - ACPI 6.0 Compliant wake up events
  - SMBIOS 2.7 Support
  - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
• Card đồ họa - Intel® Xe Graphics Architecture (Gen 12)
  - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
  - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
  - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
  - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Card âm thanh - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Supports Surge Protection
• LAN - Gigabit LAN 10/100/1000 Mb/s
  - Giga PHY Intel® I219V
  - Supports Wake-On-LAN
  - Supports Lightning/ESD Protection
  - Supports Energy Efficient Ethernet 802.3az
  - Supports UEFI PXE
• LAN không dây - 802.11ac WiFi Module
  - Supports IEEE 802.11a/b/g/n/ac
  - Supports Dual-Band (2.4/5 GHz)
  - Supports high speed wireless connections up to 433Mbps
  - Supports Bluetooth + High speed class II
• Khe cắm - 1 x PCIe Gen4x16 Slot*
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
    *Supports NVMe SSD as boot disks
• Kho tiền - 4 x SATA3 6.0 Gb/s Connectors*
  - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.

  **Supports NVMe SSD as boot disks
  Supports ASRock U.2 Kit
• Cổng kết nối - 1 x Addressable LED Header*
  - 1 x CPU Fan Connector (4-pin)**
  - 1 x Chassis Fan Connector (4-pin)***
  - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    *Supports in total up to 5V/3A, 15W LED Strip

  **The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

  ***The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

  ****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

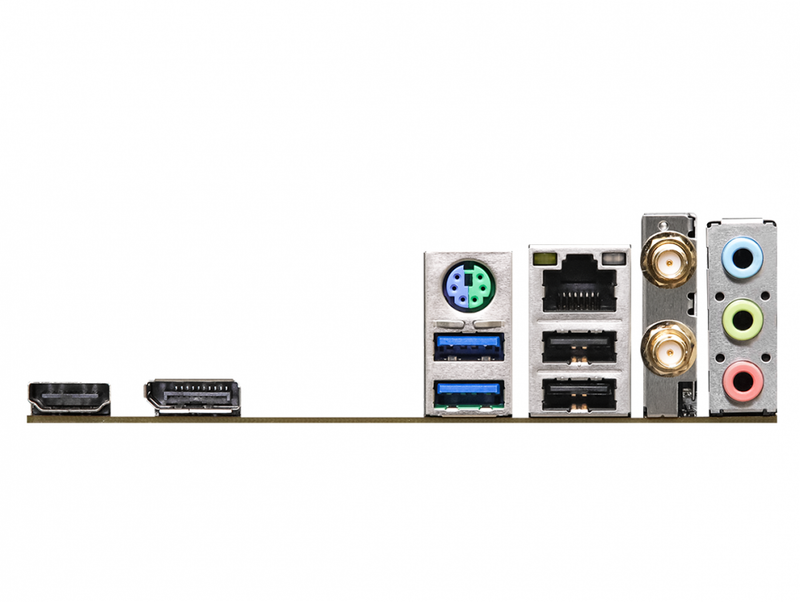

• Bảng điều khiển Input/Output phía sau - 2 x Antenna Ports
  - 1 x PS/2 Mouse/Keyboard Port
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
  - 2 x USB 2.0 Ports (Supports ESD Protection)
  - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
  - HD Audio Jacks: Line in / Front Speaker / Microphone
• Phần mềm và UEFI Software
  - ASRock Motherboard Utility (A-Tuning)
  - ASRock Polychrome SYNC
  - ASRock XFast LAN
  UEFI
  - ASRock EZ Mode
  - ASRock Full HD UEFI
  - ASRock My Favorites in UEFI
  - ASRock Instant Flash
  - ASRock Internet Flash
    *These utilities can be downloaded from ASRock Live Update & APP Shop.
• Hỗ trợ CD - Drivers, Utilities, AntiVirus Software (Trial Version)

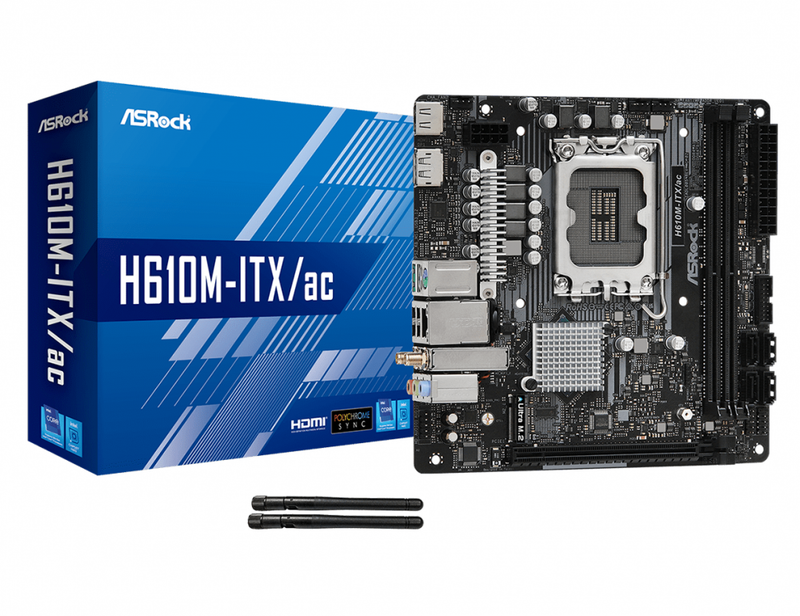

• Phụ kiện - Quick Installation Guide, Support CD, I/O Shield
  - 2 x SATA Data Cables
  - 2 x ASRock WiFi 2.4/5 GHz Antennas
  - 1 x Screw for M.2 Socket
• Hỗ trợ phần cứng - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
  - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
  - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
  - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V, +1.05V PCH
• Chuẩn vỏ máy - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
  - Solid Capacitor design
• Hệ điều hành - Microsoft® Windows® 10 64-bit / 11 64-bit
