CHIPSET | INTEL H470 |
CPU | Supports 10th/11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1200 |
MEMORY | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode |
ONBOARD GRAPHICS | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
EXPANSION SLOT | 1x PCIe 3.0 x16 slot 1x PCIe 3.0 x1 slot |
STORAGE | M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) 3x SATA 6Gb/s ports |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |

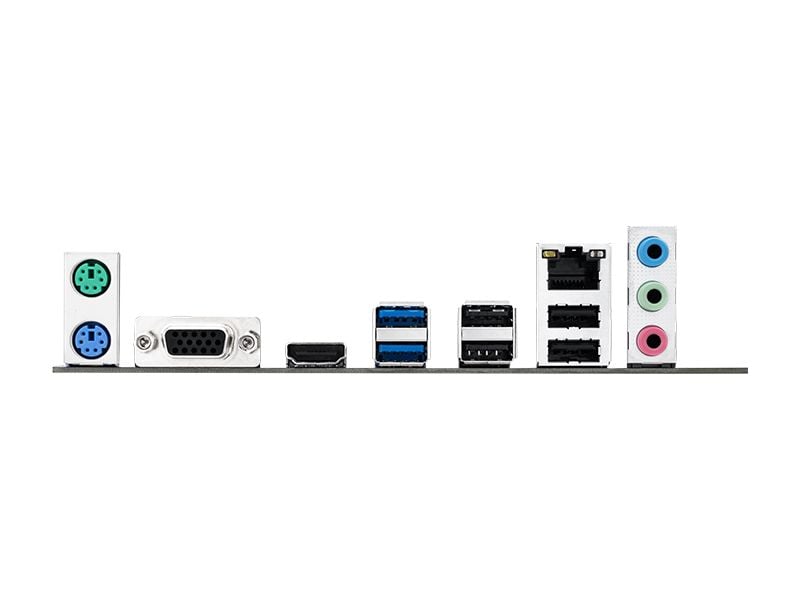

USB | *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0 |
LAN | Realtek® RTL8111H 1G LAN |
AUDIO | Realtek® ALC897 Codec 5.1-Channel High Definition Audio |
INTERNAL I/O | 1x 24-pin Power Connector(ATX_PWR) 1x 4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x CLR_CMOS 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x 2-Pin ME_PROTECT |
LED FEATURE | 4x Side-by-Side Debug LED |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
FORM FACTOR | M-ATX 225mm x 180mm |
