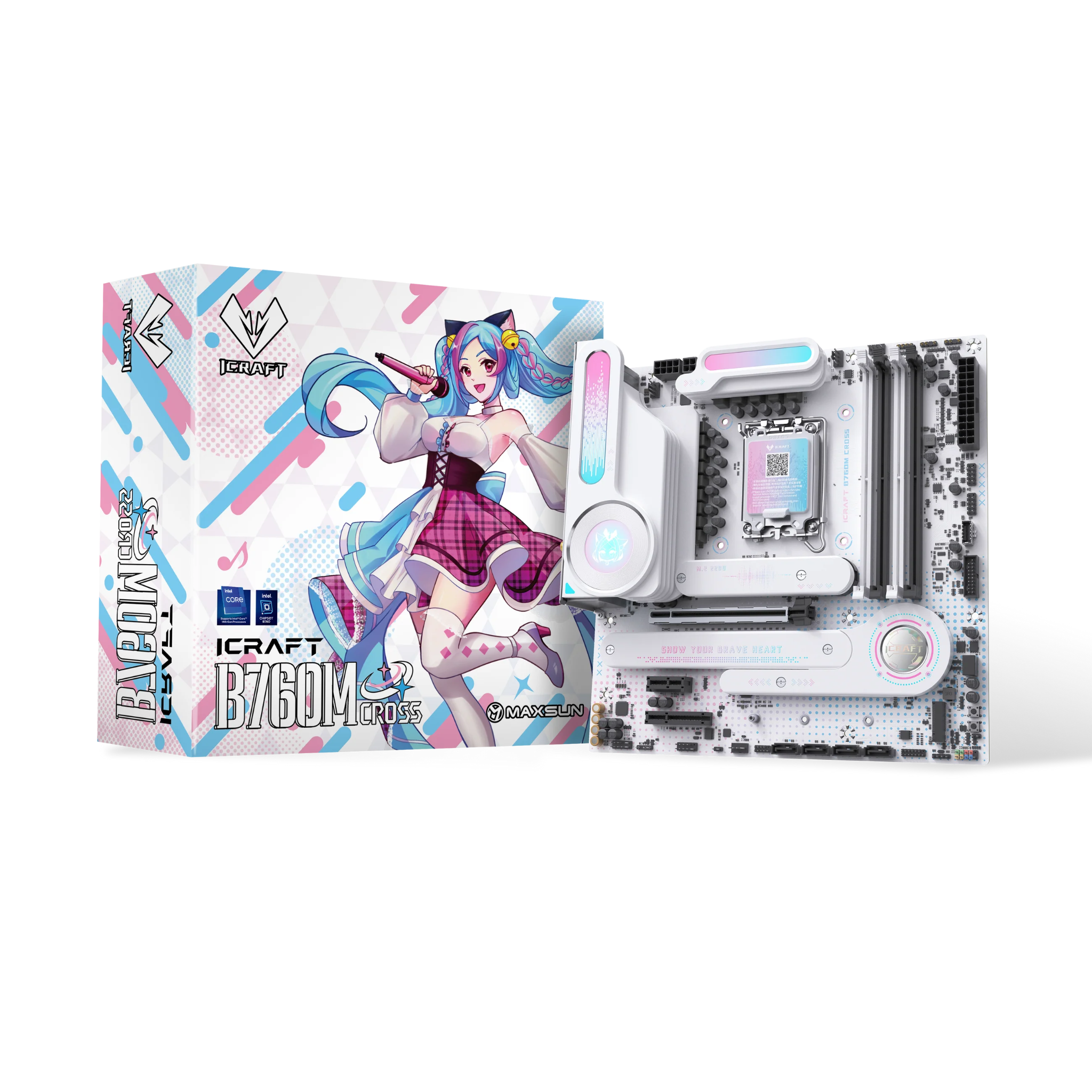

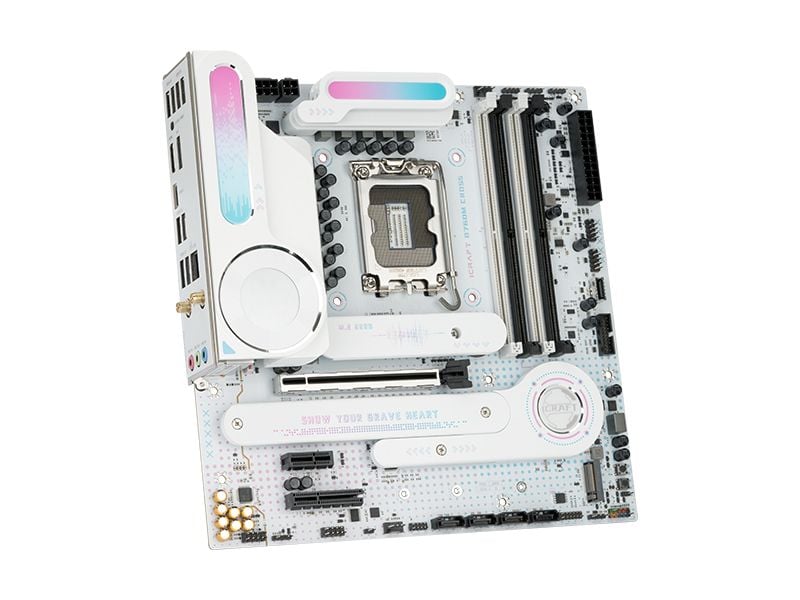

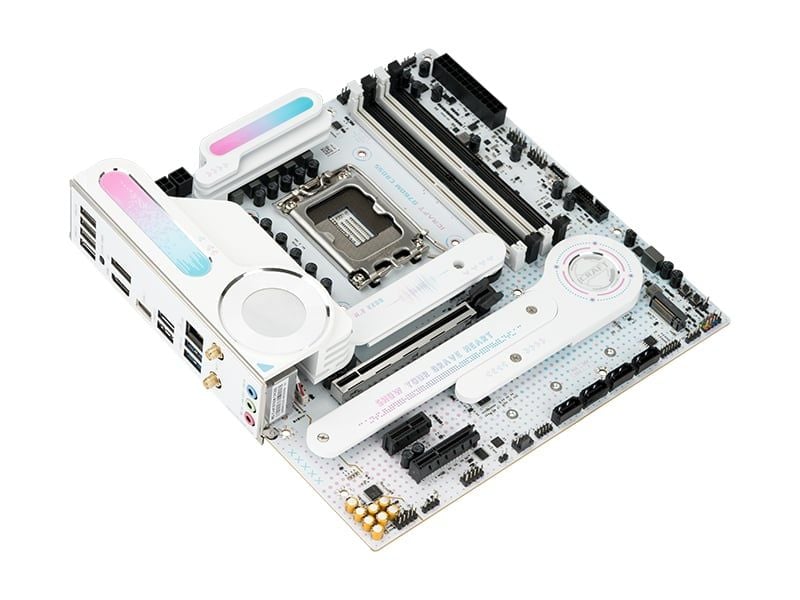

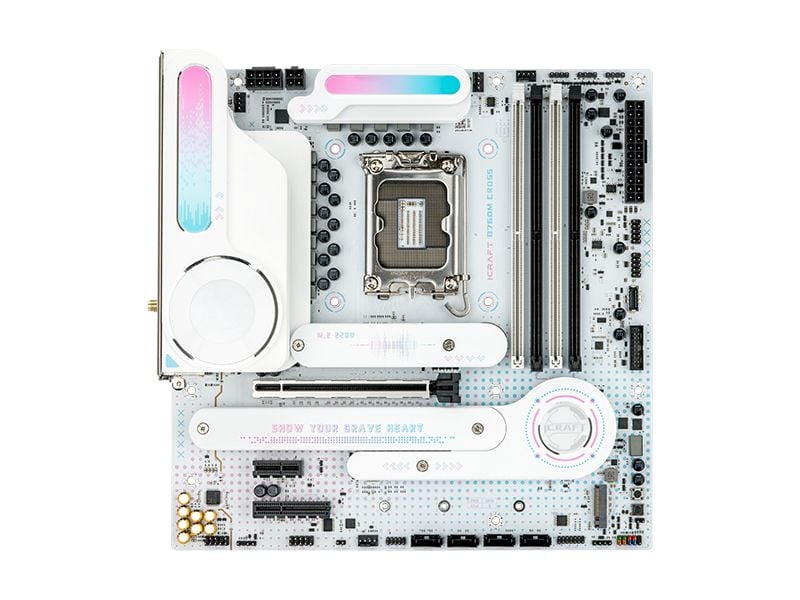

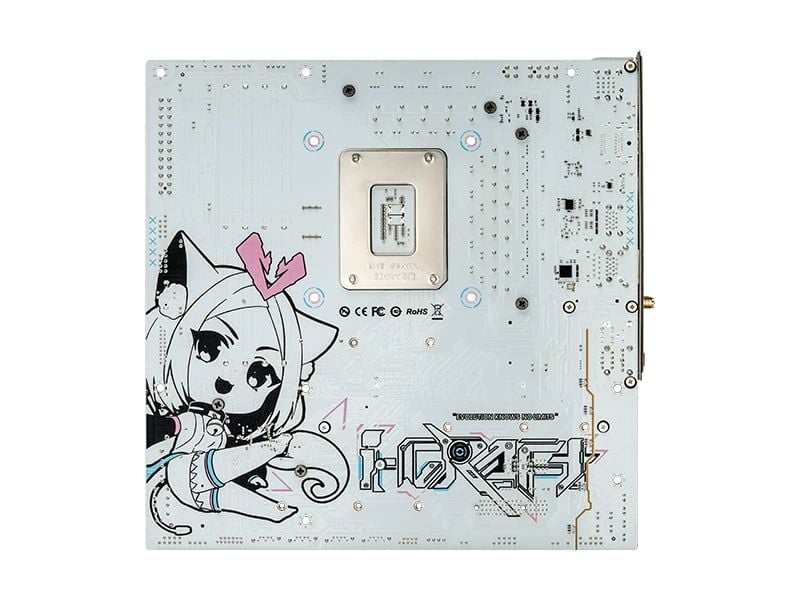

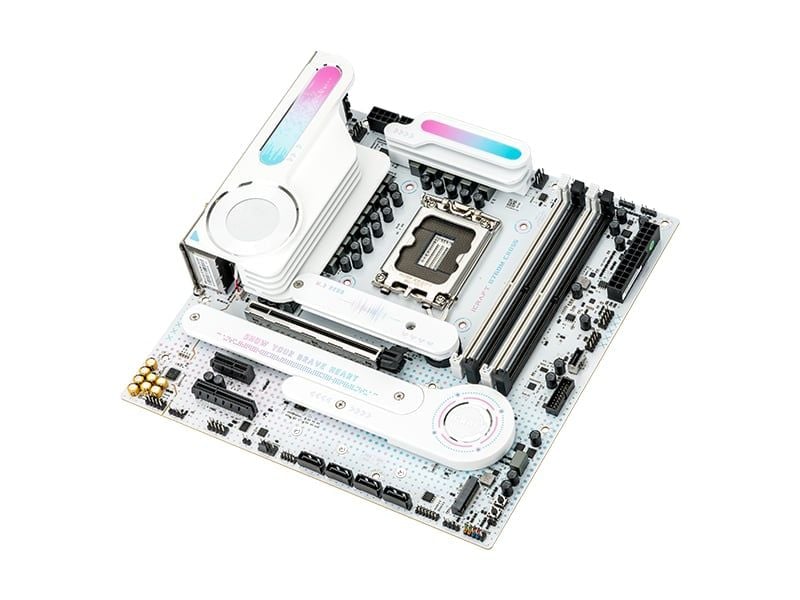

Mainboard MAXSUN iCraft B760M CROSS

Thương hiệu: MAXSUN

4,490,000₫

Thông tin sản phẩm

CHIPSET	INTEL B760
CPU	Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7600(OC)/7200(OC)/7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz
ONBOARD GRAPHICS	1x DisplayPort 1.4 1x HDMI™port HDMI™ port supports up to 4K@30Hz Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
	1x PCIe 5.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot
STORAGE	M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

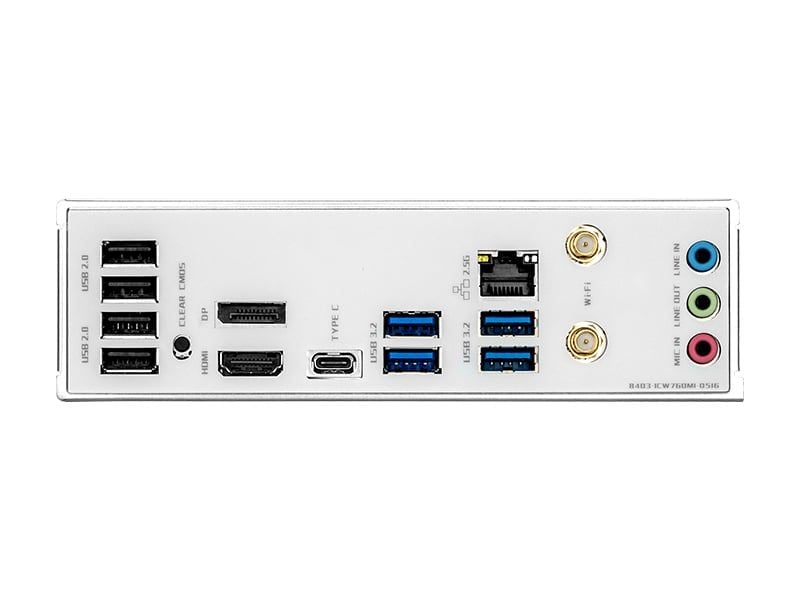

USB	Front USB (Total 7 ports) 1x USB 3.2 Gen1 Type C (10Gbps) 2x USB 3.2 Gen1 Type A 4x USB 2.0 Rear USB (Total 9 ports) 1x USB 3.2 Gen2 Type C (20Gbps) 4x USB 3.2 Gen1 Type A 4x USB 2.0
LAN	Realtek® RTL8125BG 2.5G LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 6E AX211 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
INTERNAL I/O	1x 24-pin Power Connector(ATX_PWR) 1x 8+4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x M.2 slots (Key-E) 1x 4-Pin BUZZER 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x Front Audio 1x COM_A Port 1x TPM pin header(Support TPM 2.0) 1x RGB Button 1x POWER Button
LED FEATURE	4x Distributed Debug LED
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR	M-ATX 245mm x 245mm
