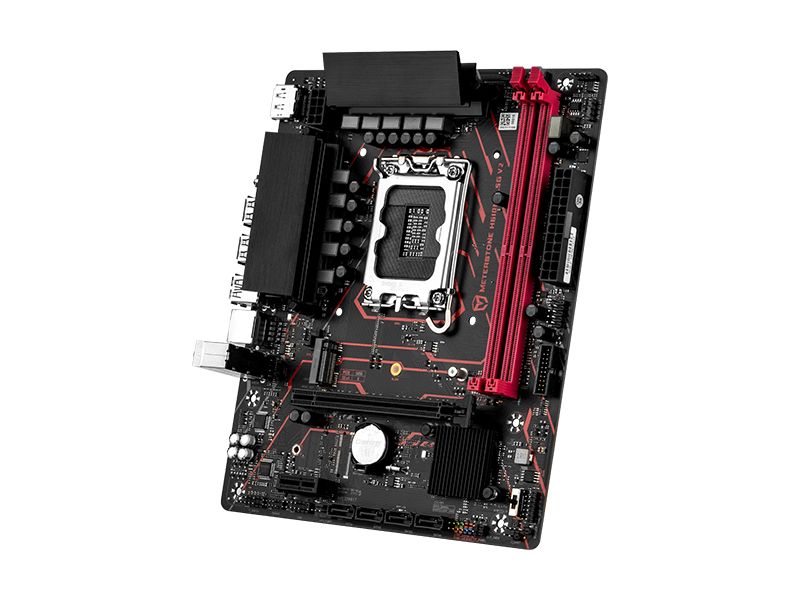

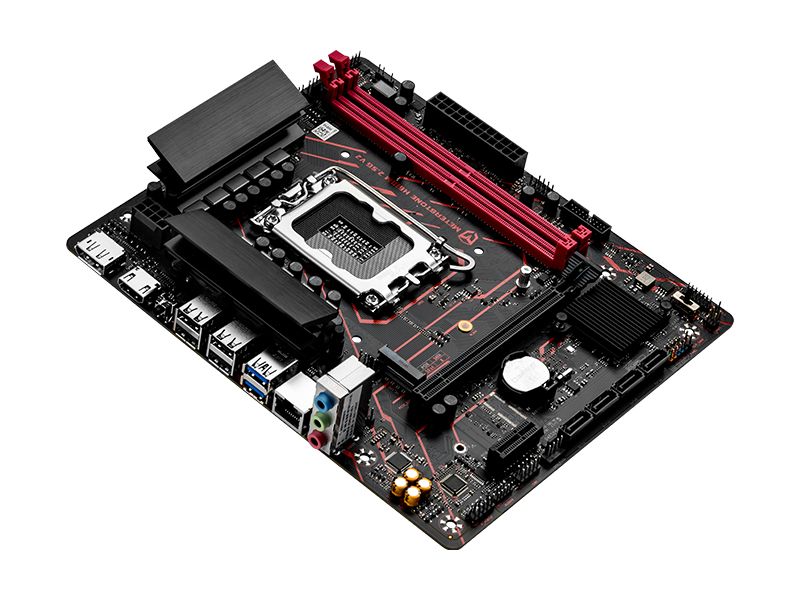

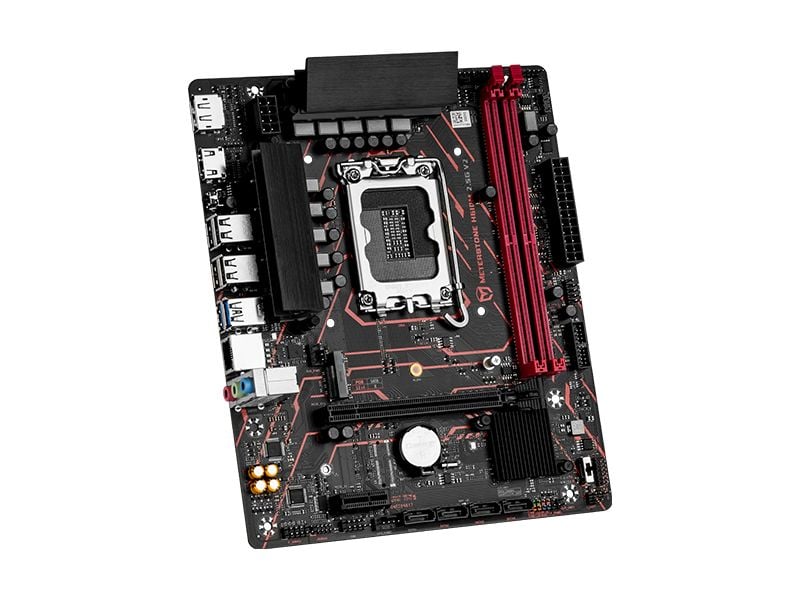

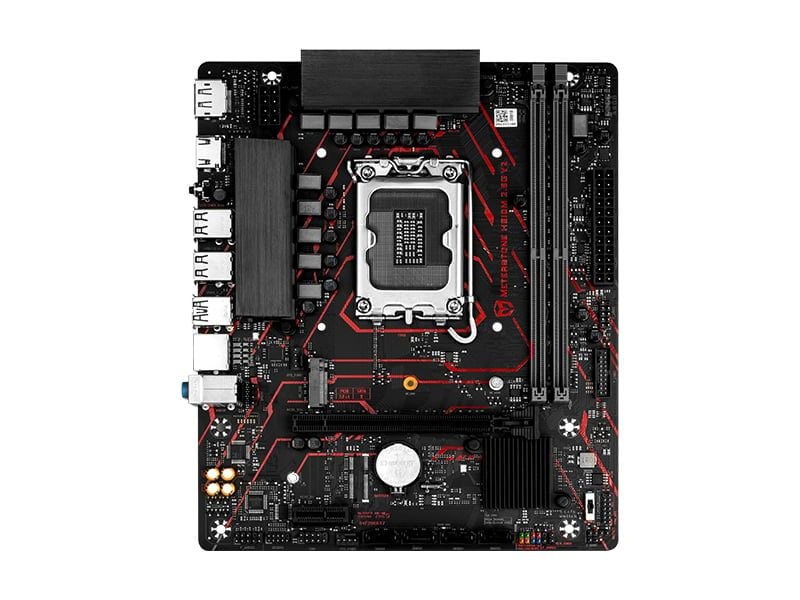

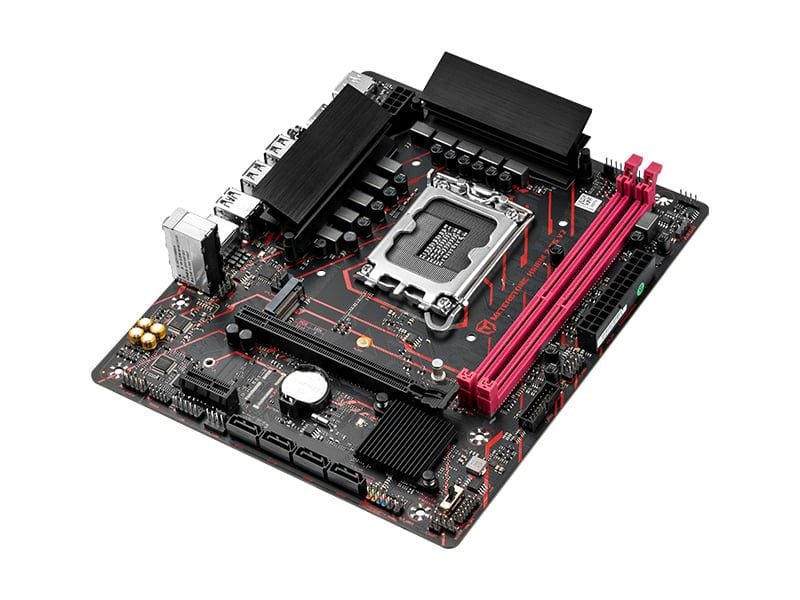

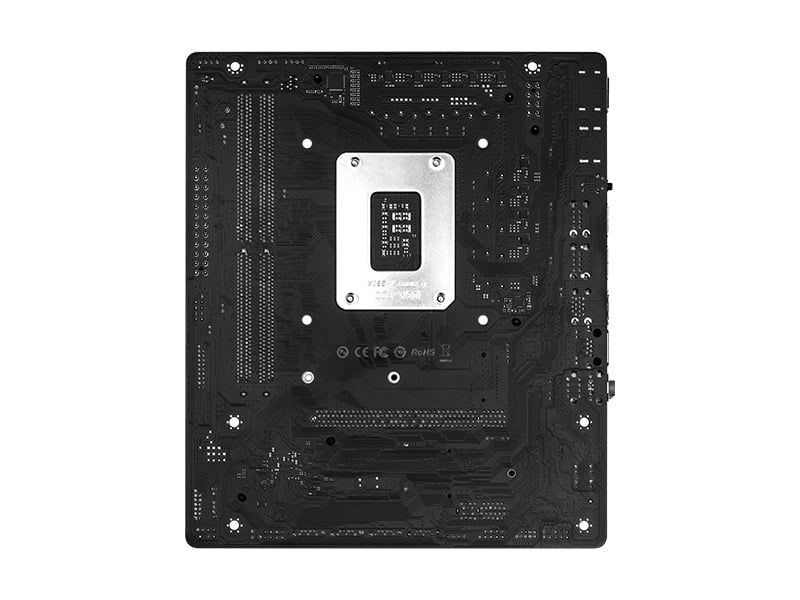

Mainboard MAXSUN Milestone H610M 2.5G

Thương hiệu: MAXSUN

2,190,000₫

Nguồn điện 8+1+1 pha
50A Dr.MOS
Card mạng 2.5G
Vỏ tản nhiệt hợp kim
Giao diện M.2 tốc độ cao

CHIPSET	INTEL H610
CPU	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode
ONBOARD GRAPHICS	1x DisplayPort 1.2 1x HDMI™port HDMI™ port supports up to 4K@30Hz Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
EXPANSION SLOT	1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot
STORAGE	M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) 4x SATA 6Gb/s ports
RAID	Not Supports RAID

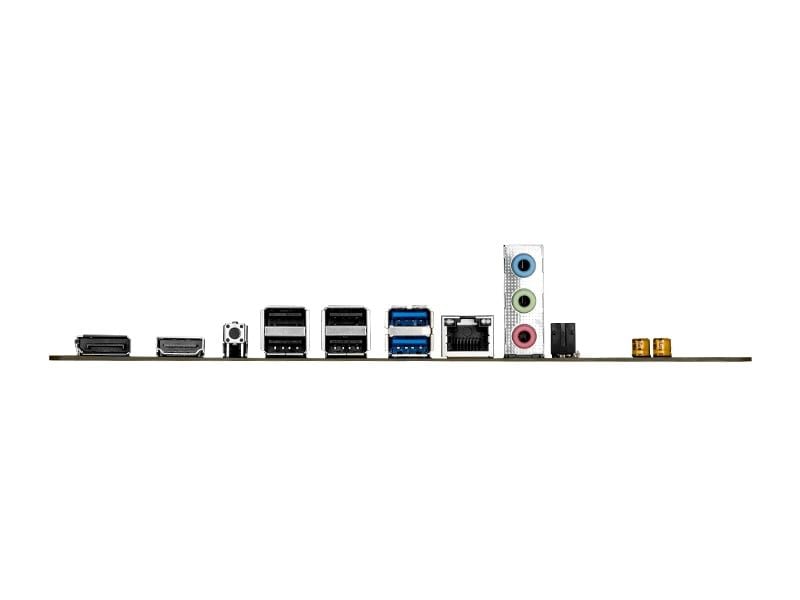

USB	Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0
LAN	Realtek® RTL8125BG 2.5G LAN
AUDIO	Realtek® ALC897 Codec 5.1-Channel High Definition Audio
INTERNAL I/O	1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x TPM pin header(Support TPM 2.0)
LED FEATURE	4x Distributed Debug LED
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR	M-ATX 220mm x 185mm
