Chipset | INTEL H610 |
---|
CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
---|
Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
---|
Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
---|
Slot | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
---|
Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G |
---|
USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
---|
LAN | Realtek® RTL8111H Gigabit LAN |
---|
Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
---|
Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
---|
LED FEATURE | 4x EZ Debug LED |
---|

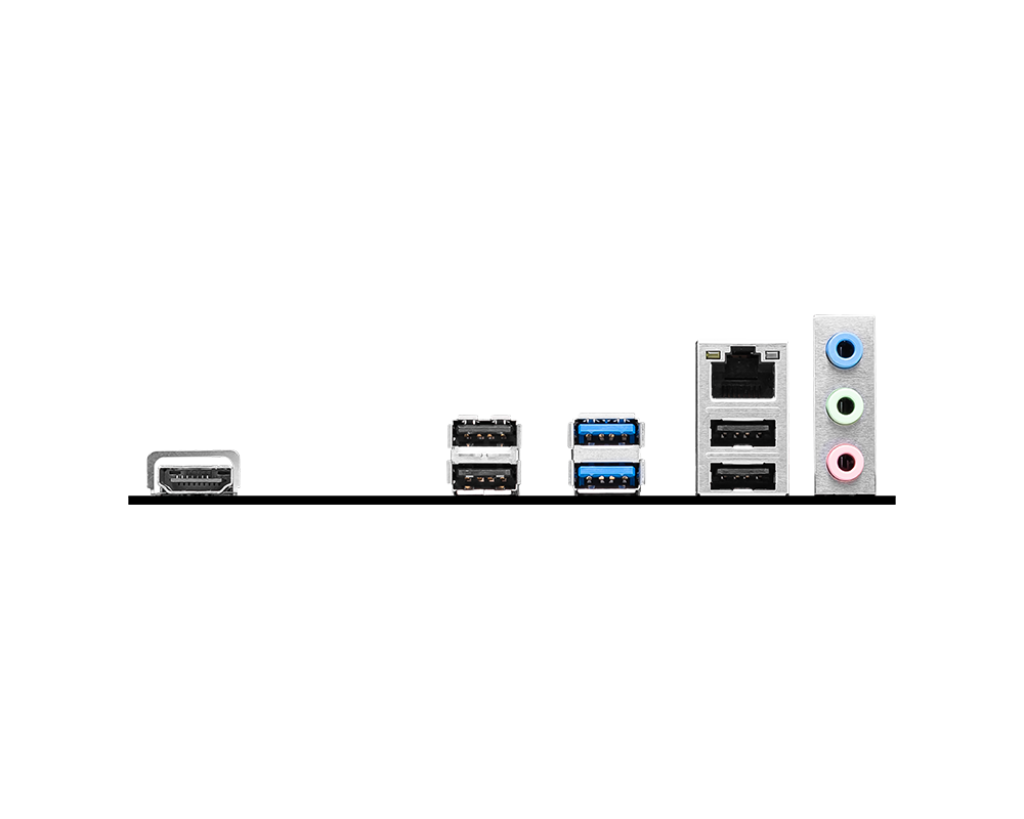

BACK PANEL PORTS | - HDMI™
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 2.0
- LAN port
- Audio Connectors
- USB 2.0
|
---|
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
---|
BOX CONTENT | |
---|
PCB Info | mATX 200mmx236.16mm |
---|
