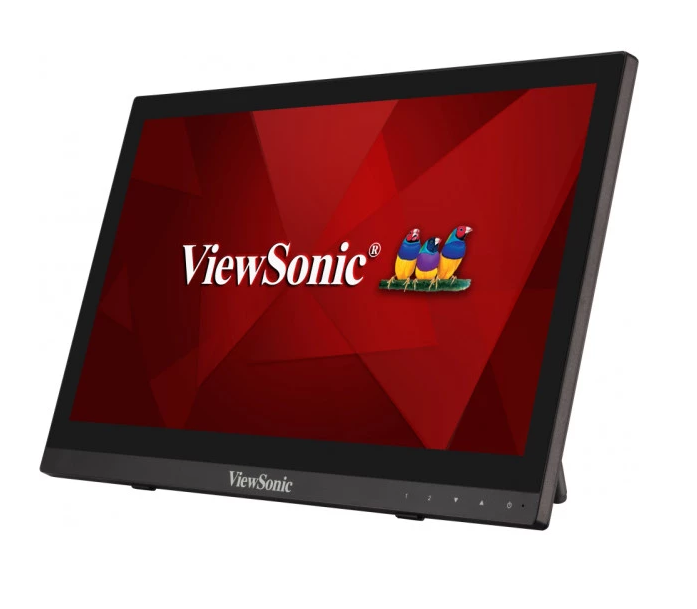

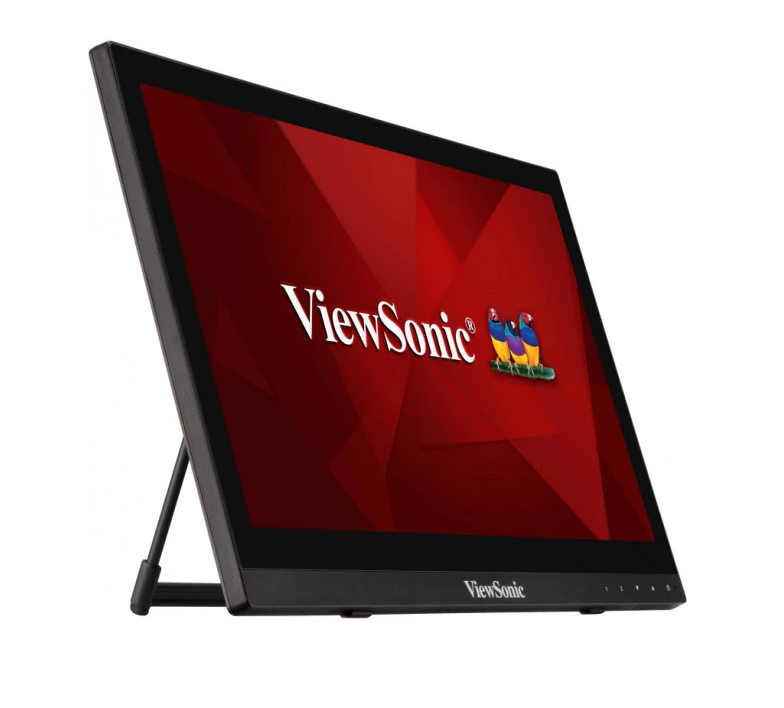

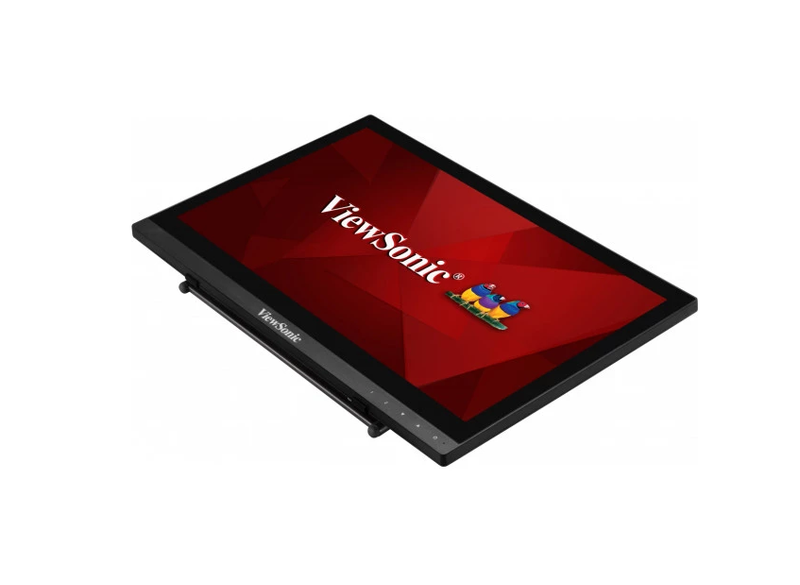

Màn hình cảm ứng ViewSonic TD1630-3 16inch

THÔNG SỐ

• DISPLAY Display Size (in.): 16
  Viewable Area (in.): 15.6
  Panel Type: TN Technology
  Resolution: 1366 x 768
  Resolution Type: WXGA
  Static Contrast Ratio: 500:1 (typ)
  Dynamic Contrast Ratio: 10M:1
  Light Source: LED
  Colours: 262K
  Colour Space Support: 6 bit true
  Brightness: 160 cd/m²
  Aspect Ratio: 16:9
  Response Time (Typical GTG): 12ms
  Viewing Angles: 90º horizontal, 60º vertical
  Backlight Life (Hours): 15000 Hrs (Min)
  Curvature: Flat
  Refresh Rate (Hz): 60
  Blue Light Filter: Yes
  Colour Gamut: NTSC: 45% size (Typ)
  Pixel Size: 0.252 mm (H) x 0.252 mm (V)

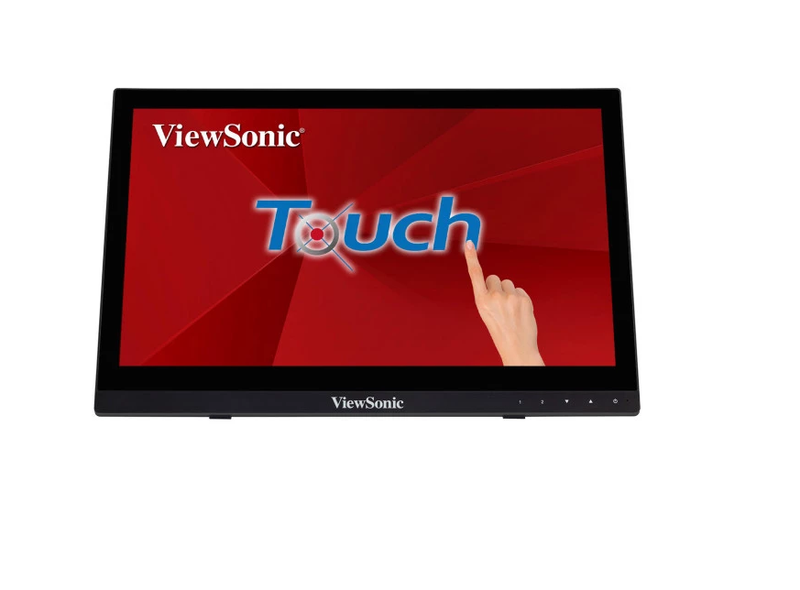

  Touch Screen: Projected capacitive, 10-point multi touch
  Surface Treatment: Glossy, Hard Coating (7H)
  Cover Glass Thickness: 0.83 mm
• INPUT SIGNAL Frequency: Fh = 30 ~ 61KHz ; Fv = 56 ~ 75Hz
  Sync: Separate Sync, TMDS
• COMPATIBILITY PC: Windows 7/8/10 tested
  Mac®: Display: Power Mac tested, Touch Module:iOS not support

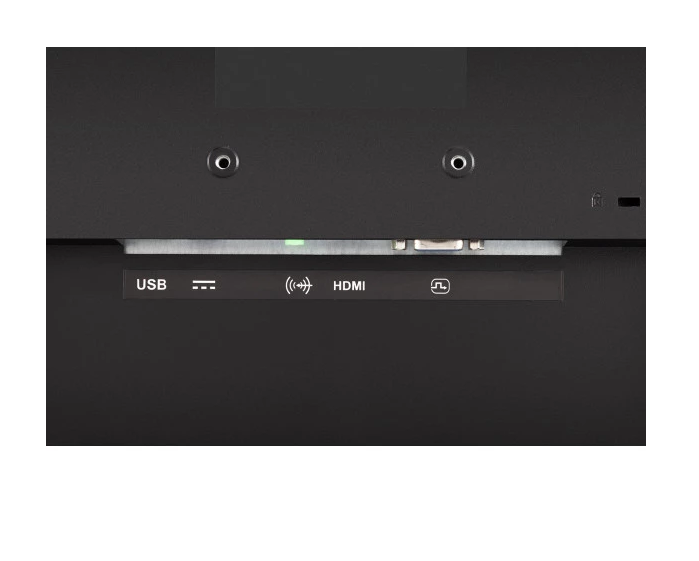

• CONNECTOR Input: DB -15 x 1
  HDMI x 1 (v1.4 compatible)
  Audio in x1 (3.5mm plug)
• AUDIO Speaker: 1W x 2
• USB Upstream: Type B x 1
• POWER Power: 5.5 x 2.1 x 11 mm DC connector
  Voltage: AC 100-240V (Universal); 50/60Hz
  Consumption: 5.5W
  Optimize: 4.9W
  Conserve: 4.3W

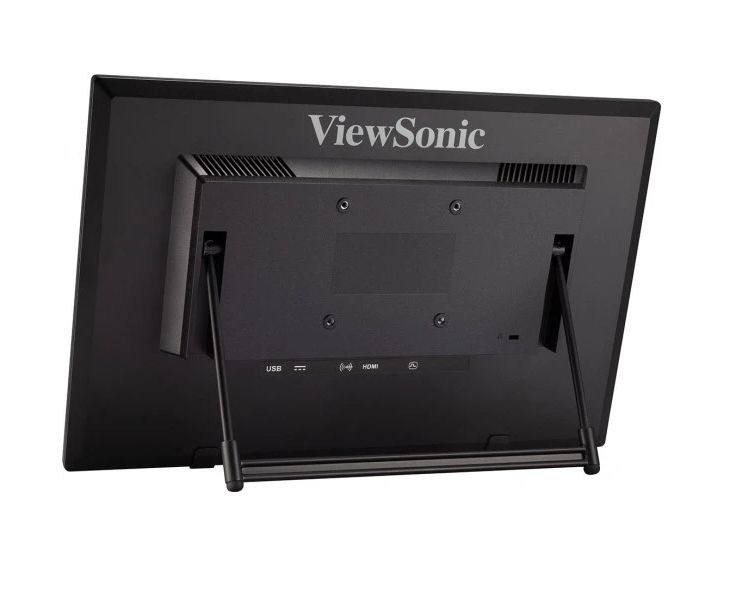

• ERGONOMICS Tilt: 15 ~ 50 degrees
• SPECIAL FEATURES Eye Care: Blue light filter
• WALL MOUNT VESA®: 75mm x 75mm
• OPERATING CONDITIONS Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
  Humidity: 20% to 85% (no condensation)
• DIMENSIONS (W x H x D) (mm) Physical with stand (mm): 379.24mm (W) x 247.12mm (H) x 37.15mm (D) (@0 degree)
  Physical without stand (mm): 379.24mm (W) x 247.12mm (H) x 37.15mm (D)
  Packaging (mm): 453mm (W) x 389mm (H) x 86mm (D)
• WEIGHT Net with stand: 1.32kg (2.91lbs)
  Net without stand: 1.32kg (2.91lbs)
  Gross: 2.5kg (5.51lbs)
• REGULATIONS VSI: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
• WARRANTY *Warranty offered may differ from market to market
• PACKAGE CONTENTS LCD Display
  40W AC/DC Adapter (1.2m)
  Power Cable (1.5m)
  VGA Cable (1.5m)
  USB2.0 Cable (1.8m)
  Audio Cable (1.8m)
  Quick Start Guide
