Thông tin sản phẩm
Mã hàng: SSR-750FX
Bảo hành: 60 Tháng
Hãng sản xuất: Seasonic
Mô tả sản phẩm
Mã hàng: SSR-750FX
Bảo hành: 60 Tháng
Hãng sản xuất: Seasonic
SPECIFICATIONS
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | S3FC - Fanless until 30 % load | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 10 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 10 - 5 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 20 A | 20 A | 62 A | 0.3 A | 3 A | |
| 100 W | 744 W | 3.6 W | 15 W | |||
| Total continuous power | 750 W | |||||

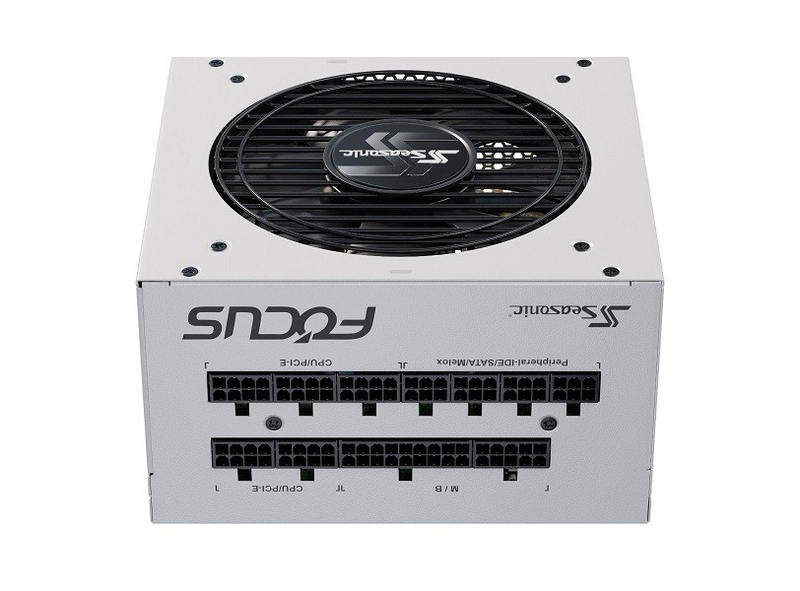

CABLES
FOCUS-GX-750
| Cable type | Connector(s) per cable | Total length (mm) | Number(s) of cable(s) included | |
|---|---|---|---|---|
 | MB (24/20 pins) | 1 | 610 | 1 |
 | CPU (8/4 pins) | 1 | 650 | 2 |
 | PCIe (8/6 pins) | 2 | 750 | 2 |
| PCIe (8/6 pins) | 1 | 750 | 0 | |
| SATA | 4 | 810 | 1 | |
| SATA | 4 | 860 | 1 | |
| SATA | 4 | 760 | 0 | |
| SATA | 2 | 700 | 0 | |
| SATA | 2 | 570 | 0 | |
| SATA | 2 | 470 | 0 | |
| SATA | 2 | 450 | 1 | |
| Molex | 3 | 690 | 1 | |
| Molex | 2 | 470 | 0 | |
| Molex to SATA 3.3 Adapter | 2 | 300 | 1 | |
| Molex to FDD Adapter | 1 | 101 | 0 |
