| Brand | SeaSonic |
| Series | PRIME Ultra Gold |

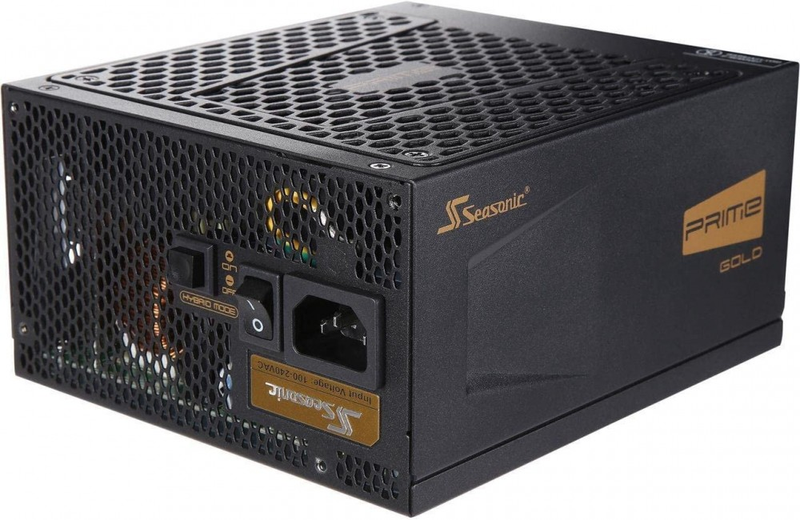

| Model | PRIME GX-850 ( SSR-850GD) |
| Details | |
| Type | ATX12V / EPS12V |
| Maximum Power | 850 W |
| Fans | 135mm Fluid Dynamic Bearing Fan |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 10 |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 11 - 5.5A |
| Output | +3.3V@20A, +5V@20A, +12V@70A, -12V@0.3A, +5VSB@2.5A |
| MTBF | 150,000 hours |
| Approvals | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Max PSU Length | 170 mm |
| Connectors | 1 x Main Power (24/20 pins) |
| 2 x CPU (8/4 pins) |
| 6 x PCIe (8/6 pins) |
| 10 x SATA |
| 5 x Peripheral |
| 1 x Floppy |
| Features | |
| Features | 80 PLUS Gold certified |
| Micro Tolerance Load Regulation (0.5 %) |
| Cable-free Connection Design |
| Premium Hybrid Fan Control - Fanless until 40 % load |
| Multi-GPU setup |
| Gold plated connectors |
| Dimension & Weight | |
| Dimensions | 6.69" x 5.91" x 3.39" |
