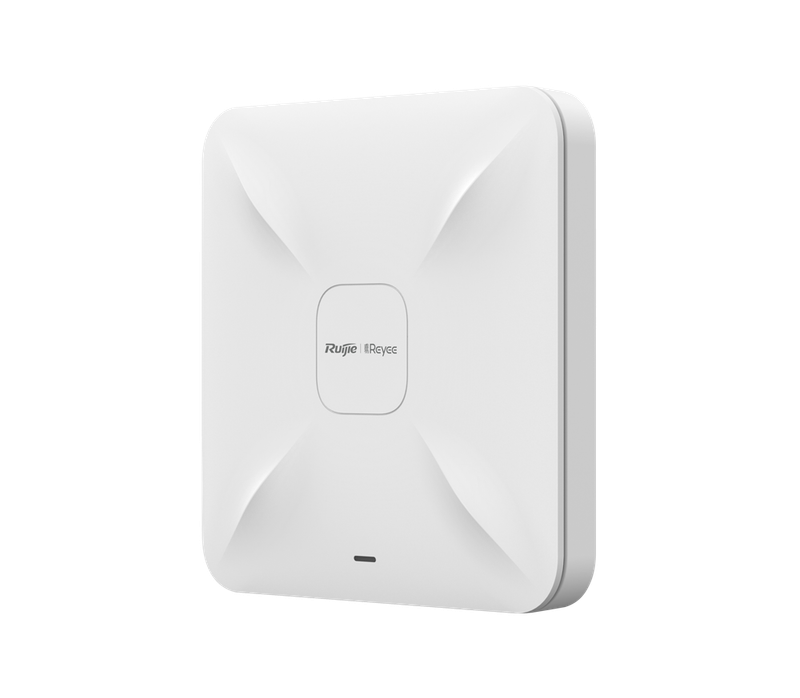

Model | RG-RAP2200(E) |
Hardware specifications | |
Radio | Dual-stream dual-band |
Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
Operating Bands | 802.11b/g/n :2.4G ~ 2.4835GHz |
802.11a/n/ac : 5G:5.150~5.350GHz,5.725~5.850GHz |
Antenna | Array antennas(2.4G: 2dBi,5G: 2dBi) |
Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
Max Throughput | Up to 400Mbps at 2.4G |
Up to 867Mbps at 5G |
1.267Gbp per AP |
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps |
DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps |
MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
Receive Sensitivity | 11b: -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps) |
11a/g: -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps) |
11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15 |
11ac HT20: -83dBm (MCS0), -57dBm (MCS9) |
11ac HT40: -79dBm (MCS0), -57dBm (MCS9) |
11ac HT80: -76dBm (MCS0), -51dBm (MCS9) |
Maximum Transmit Power | 5.725~5.850GHz:≤20dBm (EIRP) |
5.150~5.350GHz:≤20dBm (EIRP) |
2.4~2.4835GHz:≤20dBm (EIRP) |
Adjustable Power | 1dBm |
Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
Weight | 0.45kg (excluding mounting kits) |

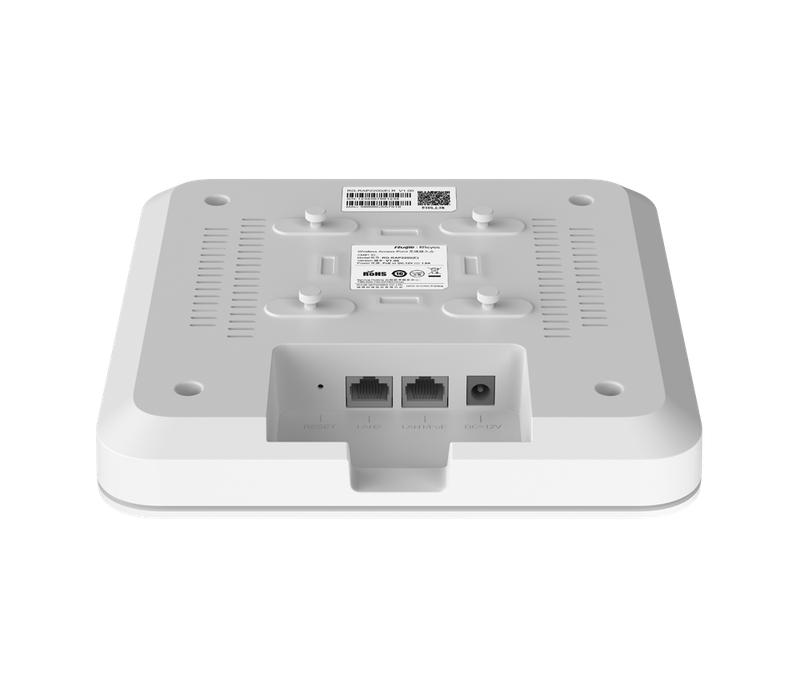

Service Ports | 2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoE |
Power Supply | Single indicator (green light) |
Power Consumption | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory) |
802.3af/802.3at PoE |
Environment | ≤ 12.95W |
Operating temperature: 0°C~40°C |
Storage temperature: -40°C~70°C |
Operating humidity: 5%~95%(non-condensing) |
Installation | Storage humidity: 5%~95%(non-condensing) |
Safety Standard | GB4943, IEC 60950-1 |
EMC Standard | GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035 |
Vibration Standard | IEC61373 |
Radio Standard | SRRC certification, EN300 328, EN301 893 |
MTBF | >400000H |
Software Features | |
Operating Mode | AP mode and routing mode |
WLAN | Maximum number of clients: 110 |
Recommended number of clients: 40 (8 at 2.4GHz, 32 at 5GHz) |
Up to 8 SSIDs |
Support SSID hiding |
Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
SSID-based and radio-based STA limit |
Support Layer 2 user isolation |
Roaming | Support Layer 2 and Layer 3 roaming |
Security | Support PSK authentication |
Support static blacklist and whitelist |
Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
Routing | Support static IP address, DHCP, PPPoE Dial Up |
Management and maintenance | Support unified networking of all network equipment |
Support local or remote management with Ruijie Cloud app |
Support local management with web |
Support remote management with Ruijie Cloud platform |
Platform management features | Automatic RF adjustment via the platform |
Unified configuration via the platform |
Unified monitoring via the platform |
