| Product SKUs |

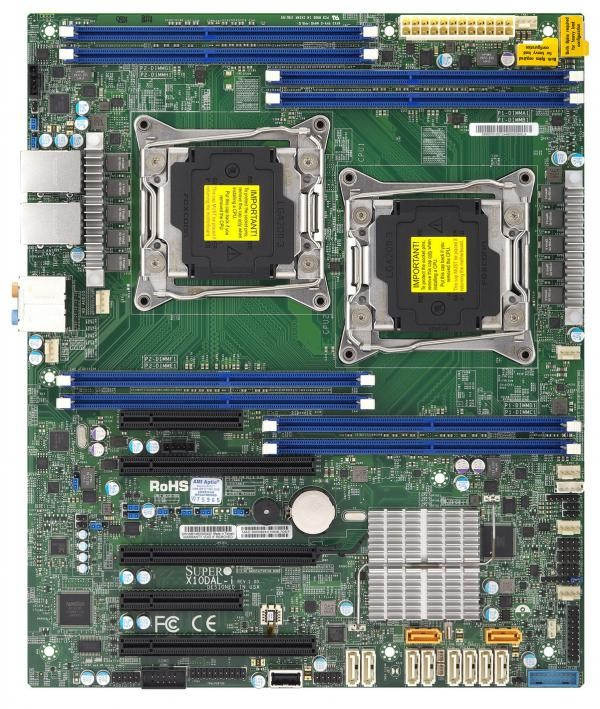

| MBD-X10DAL-i | X10DAL-i |
| Physical Stats |
| Form Factor | ATX |
| Dimensions | 12" x 10" (30.48cm x 25.4cm) |
| Processor/Cache |
| CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. |
| Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s |
| Cores / Cache | Up to 22 cores † / Up to 55MB† cache |
| Note | † BIOS version 2.0 or above is required |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
| System Memory |
| Memory Capacity | 256GB ECC RDIMM, DDR4-2400MHz, in 8 DIMM slotsUp to 1TB ECC 3DS LRDIMM |
| Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB |
| LRDIMM: 32GB, 64GB |
| 3DS LRDIMM: 128GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C612 |
| SATA | Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controllers | Dual LAN with Intel® i210 Gigabit Ethernet Controller |
| Audio | 7.1 HD Audio |
| Input / Output |
| SATA | 10 SATA3 (6Gbps) port |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 3 USB 2.0 ports (2 headers, 1 Type A) |
| 6 USB 3.0 ports (4 rear + 2 headers) |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | 1 TPM Header |
| Expansion Slots |
| PCI-E | 2 PCI-E 3.0 x16 (in x16 slot), |
| 1 PCI-E 3.0 x8 (in x16 slot), |
| 1 PCI-E 3.0 x4 (in x8 slot) |
| 1 PCI-E 2.0 x4 (in x8 slot) |
| System BIOS |
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP) |
| PCI 2.3 |
| ACPI 1.0 / 2.0 / 3.0 / 4.0 |
| USB Keyboard support |
| SMBIOS 2.7.1 |
| UEFI 2.3.1 |
| Management |
| Software | SuperDoctor® 5, Watchdog |
| Power Configurations | ACPI Power Management |
| Power-on mode for AC power recovery |
| PC Health Monitoring |
| Voltage | +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 Phase-switching voltage regulator, VBAT |
| FAN | 7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| LED | CPU / System Overheat LED |
| Other Features | Chassis intrusion detection, Chassis intrusion header, RoHS, SDDC |
| Operating Environment |
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
