Product SKUs |

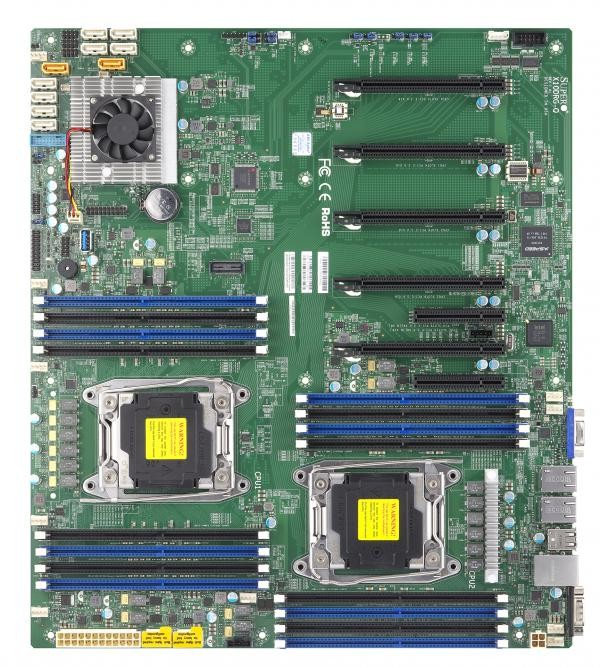

MBD-X10DRG-Q | X10DRG-Q |
Physical Stats |
Form Factor | Proprietary |
Dimensions | 15.2" x 13.2" (38.61cm x 33.53cm) |
Processor/Cache |
CPU | Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. |
Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 160W, 1 QPI up to 9.6GT/s |
Cores / Cache | Up to 22 cores † / Up to 55MB† cache |
Note | † BIOS version 2.0 or above is required |
Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. |
System Memory |
Memory Capacity | 16x 288-pin DDR4 DIMM slots , |
Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM |
Memory Type | 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
DIMM Sizes | RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB |
LRDIMM: 32GB, 64GB |
3DS LRDIMM: 128GB |
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors |
On-Board Devices |
Chipset | Intel® C612 |
SATA | RAID 0,1,5,10 |
Intel® C612 controller for 6 SATA3 (6 Gbps) ports; |
AHCI SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
SCU SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
ASPEED AST2400 BMC |
Network Controllers | Dual LAN with Intel® i350 Gigabit Ethernet Controller |
Single LAN with Virtual Machine Device Queues reduce I/O overhead |
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output |
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI) |
Audio | HD Audio with optical S/PDIF |
Graphics | Aspeed AST2400 BMC |
Input / Output |
SATA | 10 SATA3 (6Gbps) port |
LAN | 1 RJ45 Gigabit Ethernet LAN ports |
2 RJ45 Gigabit Ethernet LAN ports |
USB | 4 USB 2.0 ports (2 rear + 2 headers) |
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A) |
Video Output | 1 VGA port |
Serial Port / Header | 2 COM Ports (1 rear, 1 header) |
TPM | 1 TPM Header |
Others | Thunderbolt AOC Header |
Expansion Slots |
PCI-E | 4 PCI-E 3.0 x16, |
1 PCI-E 3.0 x8 (in x16 slot), |
1 PCI-E 3.0 x8 Or 2 PCI-E 3.0 x8 (in x16 slot) |
1 PCI-E 2.0 x4 (in x8 slot), |
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.) |
System BIOS |
BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
BIOS Features | Plug and Play (PnP) |
PCI 2.3 |
ACPI 1.0 / 2.0 / 3.0 / 4.0 |
USB Keyboard support |
SMBIOS 2.7.1 |
UEFI 2.3.1 |
Management |
Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SUM, SuperDoctor® 5, Watchdog |
Power Configurations | ACPI Power Management |
CPU Fan auto-off in sleep mode |
Power-on mode for AC power recovery |
PC Health Monitoring |
Voltage | +12V, +3.3V, +5V, +5V standby, 10 (4-pin), 6 Phase-switching voltage regulator, Chassis intrusion header, Memory Voltages, Monitors for CPU Cores |
FAN | 10x 4-pin fan headers (up to 10 fans), 10x fans with tachometer monitoring, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, Status monitoring for speed control |
Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 8 Fan Connectors, Thermal Monitor 2 (TM2) support, PECI |
LED | CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID |
Other Features | Chassis intrusion detection, Chassis intrusion header, Dual Cooling Zones, RoHS |
Operating Environment |
Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range | 8% - 90% (non-condensing) |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
