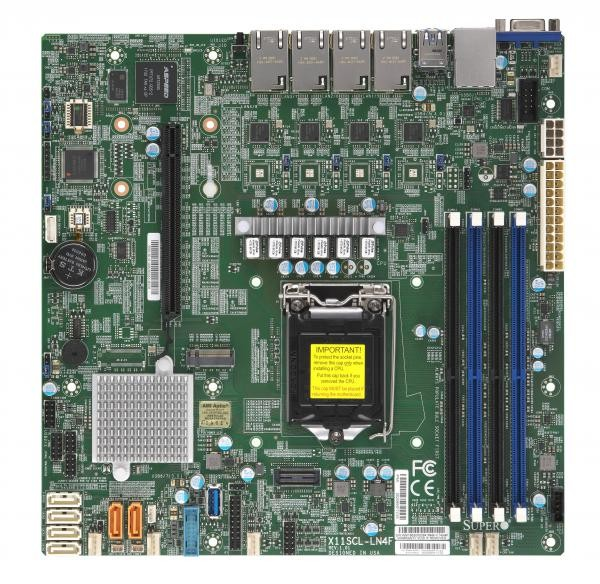

| MBD-X11SCL-LN4F | X11SCL-LN4F |
| Physical Stats |
| Form Factor | microATX |
| Dimensions | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor/Cache |
| CPU | 8th/9th Generation Intel® Corei3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor. |
| Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP |
| Cores / Cache | 8 cores, 16 threads |
| Note | BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core i3/Pentium®/Celeron® Processors |
| System Memory |
| Memory Capacity | Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots |
| Memory Type | 2666/2400/2133MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| On-Board Devices |
| Chipset | Intel® C242 |
| SATA | Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Quad LAN with Intel® Ethernet Controller I210-AT |
| Graphics | Aspeed AST2500 BMC |
| Input / Output |
| SATA | 6 SATA3 (6Gbps) port |
| LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| USB | 4 USB 2.0 ports (2 rear + 2 via headers) |
| 5 USB 3.1 ports (2 rears + 2 via headers + 1 Type A) |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | 1 TPM Header |
| |
| PCI-E | 1 PCI-E 3.0 x16 |
| M.2 | M.2 Interface: 1 PCI-E 3.0 x4 |
| Form Factor: 2280/22110 |
| Key: M-Key |
| Double Height Connector |
| System BIOS |
| BIOS Type | UEFI 256Mb |
| BIOS Features | ACPI 6.0 |
| SMBIOS 2.7 |
| Plug and Play (PnP) |
| RTC (Real Time Clock) Wakeup |
| UEFI 2.7 |
| USB Keyboard support |
| PCI 3.0 |
| Management |
| Software | IPMI2.0, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| System Mangement Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| Power Configurations | ACPI Power Management |
| PC Health Monitoring |
| Voltage | +12V, +3.3V, +5V, +5V standby, 6 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT |
| FAN | 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI |
| LED | UID/Remote UID, CPU / System Overheat LED |
| Other Features | ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL |
| Operating Environment |
| Operating Temperature Range | 0°C ~ 50°C (32°F ~ 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
