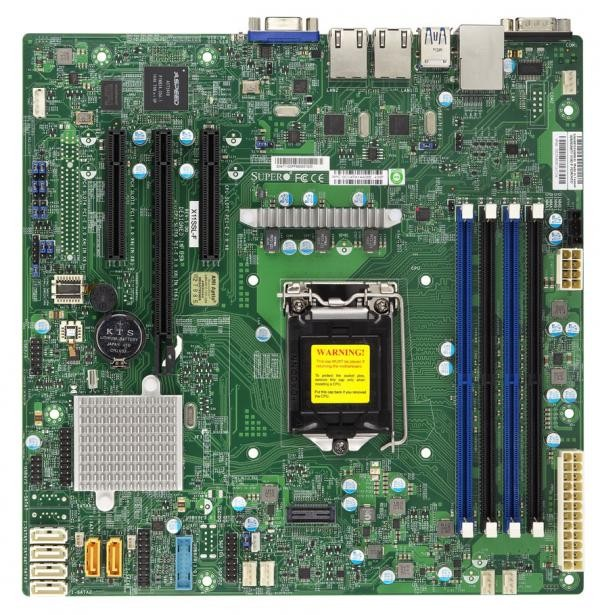

Supermicro MBD-X11SSL-o (BOX)

Thương hiệu: SUPERMICRO Mã sản phẩm: MBD-X11SSL-o

6,999,000₫

Thông tin sản phẩm

Mã hàng: MBD-X11SSL-o
Bảo hành: 36 tháng
Hãng sản xuất: Supermicro

Mô tả sản phẩm

1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core i3 series,
Intel® Celeron® and Intel® Pentium®
2. Intel® C232 chipset
3. Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; 4 DIMM slots
4. Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
5. 6 SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
6. I/O: 1 VGA, 1 COM, TPM header
7. 2 SuperDOM with built-in power
8. 5 USB 3.0 (2 rear, 2 via header(s), 1 Type A), 6 USB 2.0 (2 rear, 4 via header(s))

Thông tin sản phẩm

Mã hàng: MBD-X11SSL-o
Bảo hành: 36 tháng
Hãng sản xuất: Supermicro

THÔNG SỐ

Product SKUs
MBD-X11SSL	X11SSL
Physical Stats
Form Factor	Micro-ATX
Dimensions	9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU	Intel® 7th/6th Generation Core i3 series, Intel® Celeron®, Intel® Pentium®, Intel® Xeon® processor E3-1200 v6/v5.
CPU	Single Socket H4 (LGA 1151) supported, CPU TDP support 80W
Note	BIOS version 2.0 or above is required to support 7th Generation Intel® Core i3 Processors and Intel® Xeon® Processor E3-1200 v6 series
System Memory
Memory Capacity	64GB Unbuffered ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots
Memory Type	2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes	4GB, 8GB, 16GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C232
SATA	Intel® C232 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers	Dual LAN with Intel® Ethernet Controller I210-AT
Graphics	Aspeed AST1400
Input / Output
USB	6 USB 2.0 ports (2 rear + 4 headers)
USB	5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output	1 VGA port
Serial Port / Header	1 COM Port (1 rear)
TPM	TPM Header
Expansion Slots
PCI-E	1 PCI-E 3.0 x8 (in x16 slot),
	1 PCI-E 3.0 x8,
	1 PCI-E 3.0 x4 (in x8 slot)
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	ACPI 1.0 / 2.0 / 3.0 / 4.0
	APM 1.2
	DMI 2.3
	Hardware BIOS Virus protection
	PCI 2.3
	Plug and Play (PnP)
	SMBIOS 2.7.1
	UEFI 2.3.1
	USB Keyboard support
Management
Software	NMI, SSM, SuperDoctor® 5, Watchdog
Power Configurations	ACPI Power Management
Power Configurations	Power-on mode for AC power recovery
PC Health Monitoring
Voltage	+12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
FAN	5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
Temperature	CPU thermal trip support, PECI, Monitoring for CPU and chassis environment, Thermal Monitor 2 (TM2) support
LED	UID/Remote UID, CPU / System Overheat LED
Other Features	Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, WOL
Operating Environment
Operating Temperature Range	0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range	5% - 95% (non-condensing)
