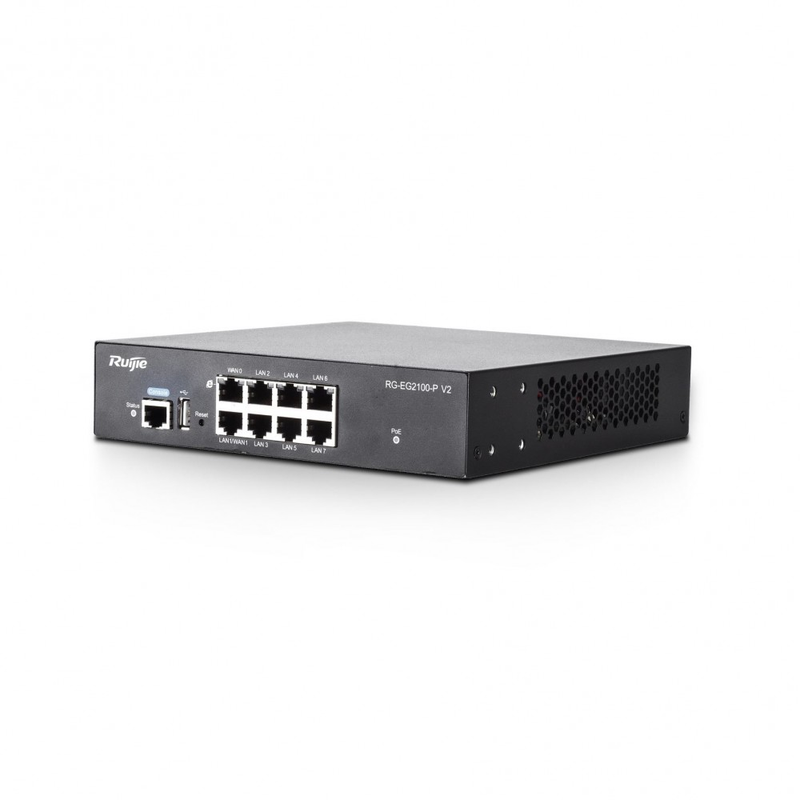

| Model | RG-EG2100-P v2 |
| Hardware Specification |
| CPU | Multi-core MIPS |

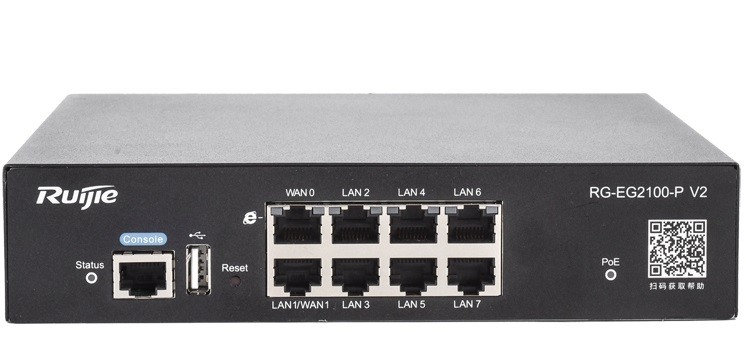

| Fixed Ports | 8 1000BASE-T ports (7x POE/POE+) |
| WAN Ports | Upto 2 |
| Flash | 4GB EMMC |
| Hard Disk | N/A |
| Memory | 512M |
| Performance & Feature |
| Performance | 1000Mbps (1518 bytes) |
| 450Mbps (512bytes) |
| 70Mbps (64 bytes) |
| Concurrent Session | 100,000 |
| Recommended Concurrent User | 300 |
| Portal Authentication Capacity | 100 (Max Concurrent Users) |
| Portal Authentication Type | Username/Password Auth (Local, Windows-based AD/LDAP Integration) |
| One-click Authentication; |
| Guest Voucher (Ruijie Cloud required); |
| Seamless Authentication (Portal) | Support |
| App Caching | Support |
| Cache Capacity | 750MB |
| Cache Resources | Android APK files (non-https server required) |
| Network Protocol | Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc. |
| Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF |
| Support DHCP Relay and DHCP Server |
| Support PPPoE Client |
| Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc. |
| Support ARP, trusted ARP, proxy ARP, etc. |
| Support Ping and Traceroute fault detection |
| Application Visibility | Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification: |
| |
| P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc. |
| |
| Multimedia: YouTube, Facebook Video, WebEx Conference & etc. |
| |
| Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc. |
| |
| VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc. |
| |
| Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc. |
| |
| Software Update: Window, McAfee, Kaspersky, ESET & etc. |
| |
| Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc. |
| |
| Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc. |
| |
| URL Filtering | Support custom URLs |
| Support remote HTTP automatic URL library upgrade |
| Local log storage (NAT log, traffic log, URL log, etc.) |
| Support storage on external log server |
| WAN Load Balancing | Support (upto 2 WAN Port) |
| IPsec VPN Tunnel | 16 |
| Network Security | Anti-ARP Spoofing |
| Defense against malicious attacks from internal and external networks |
| Support secure address binding |
| Block WAN Ping |
| Prevent Port Scan Attack |
| Prevent Fragmentation Attack |
| Prevent ICMP Flood Attack |
| Prevent Teardrop Attack |
| Prevent Ping of Death Attack |
| Prevent Land Attack |
| Prevent Smurf / Fraggle attack |
| Prevent SYN Flood Attack |
| Ruijie Cloud Integration Feature | Support device health monitoring status |
| Support centralized configuration change management & backup |
| Support Top 10 Application/User traffic visualization |
| Support device firmware management |
| Support event-based alarm notification |
| Other Features | Integrate with AAA software to support multiple authentication modes |
| Other Features | Support push advertising page |
| Service and Support | Support multi-link load balancing |
| | Support remote HTTP online upgrade for signature library, software version, etc. |
| | Lifetime Free signature library upgrade |
| Rack Height | 1U |
| Weight | 2KG |
| Power Supply | 100-240V~,50-60Hz,3A |
| PoE Budget | 135W |
| Power Consumption | <150W |
| Dimensions (W x D x H) (mm) | 200×200x43.6 |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10% to 90%RH |
