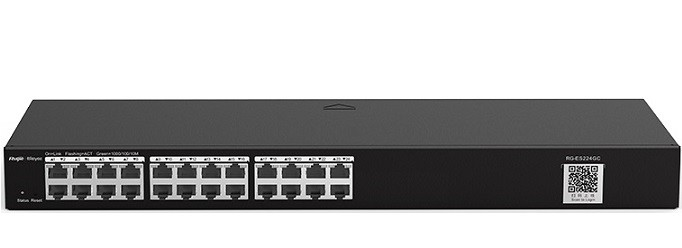

| Model Specifications | RG-ES224GC |
| Hardware specifications |
| Ports | 24 10/100/1000Base-T ports |
| Switching capacity | 48Gbps |
| Package forwarding rate | 36Mpps |
| Surge protection | Common mode: 6KV |
| Power consumption | <14W |
| Power supply | Built-in power supply |
| Dimensions (W x D x H) | 440x165x44mm |
| MTBF | >200K |
| Operating environment |
| Operating temperature | 0 to 50°C |
| Storage temperature | -40~70ºC |
| Operating humidity | 10% to 90% RH |
| Storage humidity | 5% to 95% RH |
| Software features |
| MAC capacity | 8K |
| Static MAC address | 16 |
| VLAN | Support 802.1Q VLAN |
| Port management | Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration |
| Security | Support broadcast storm suppression, port speed limit, port isolation, DHCP Snooping |
| L2 features | Support port mirroring, loop protection, cable detection |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud |
