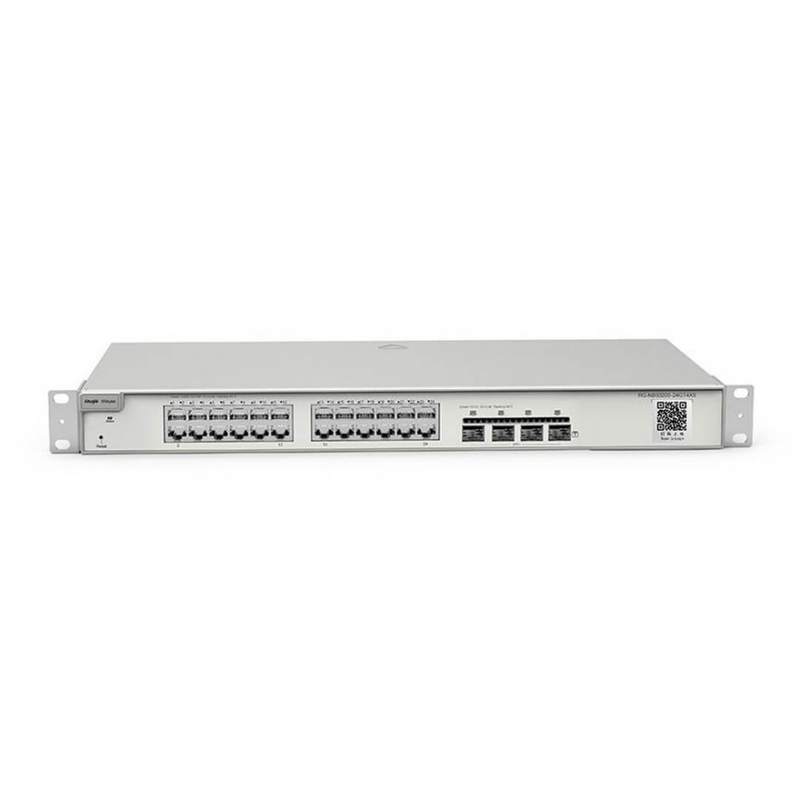

| Model | RG-NBS3200-24GT4XS |
| Fixed ports | 24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply |
| Switching capacity | 336Gbps |
| Packet forwarding rate | 96Mpps |
| MAC address | Support static MAC address, MAC address filtering |
| MAC address table size | 16K |
| Number of VLANs | 4094 |
| Link aggregation | Support |
| Port mirroring | Many-to-one mirroring |
| Spanning tree | STP, RSTP |
| LLDP | Support |
| ACL | IP standard ACL |
| MAC extended ACL |
| IP extended ACL |
| Port ACL for Layer 2 ports (physical port / AP) |
| QoS | Port-based speed limit (ingress/egress) |
| Security | Port protection |
| | Hardware CPP |
| Management | Web management, Ruijie Cloud or Ruijie Cloud app management |
| DHCP | DHCP snooping |
| EEE | Support |
| Physical specifications | |
| Dimensions | 440x207.5x43.6mm |
| Temperature | Operating temperature: 0 ℃ ~ 50 ℃ |
| Storage temperature: -40 ℃ ~ 70 ℃ |
| Humidity | Operating humidity: 10% ~ 90% RH |
| Storage humidity: 5% ~ 90% RH |
